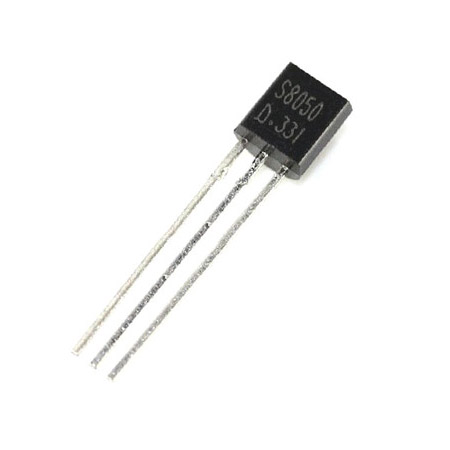

Transistors are the backbone of modern electronics, enabling a wide range of applications from amplification to signal processing. Among the plethora of transistors available, the S8050 NPN transistor stands out for its versatility and reliability. In this blog, we will delve into the S8050 NPN transistor, exploring its pinout, description, specifications, applications, how to use it, equivalent parts, manufacturers, and packaging.
1. Pinout and Description:

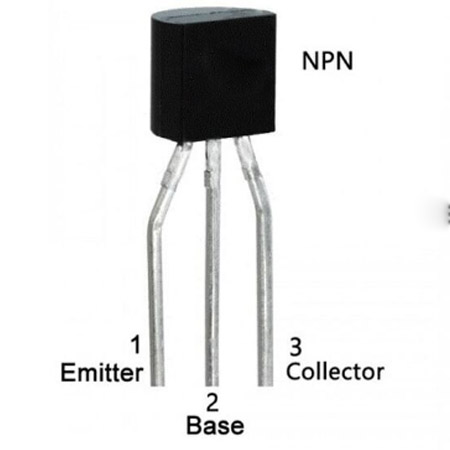

The S8050 is an NPN (Negative-Positive-Negative) bipolar junction transistor (BJT). It comes in a TO-92 package, which is a widely used small-sized plastic encapsulation. The transistor has three pins: Collector (C), Base (B), and Emitter (E). The pinout is as follows:
Collector (C): Pin 1
Base (B): Pin 2
Emitter (E): Pin 3
The S8050 operates as an NPN transistor, meaning it allows current to flow from the collector to the emitter when a small current is applied to the base.
2. Specifications:
Voltage Ratings:
Collector-Base Voltage (VCBO): 40V
Collector-Emitter Voltage (VCEO): 25V
Emitter-Base Voltage (VEBO): 5V
Current Ratings:
Collector Current (IC): 0.5A
Power Dissipation (PD): 625mW
Transition Frequencies:
Current Gain - hfe: 60-320
Transition Frequency - ft: 150MHz
3. Applications:
The S8050 NPN transistor finds applications in various electronic circuits, including but not limited to:

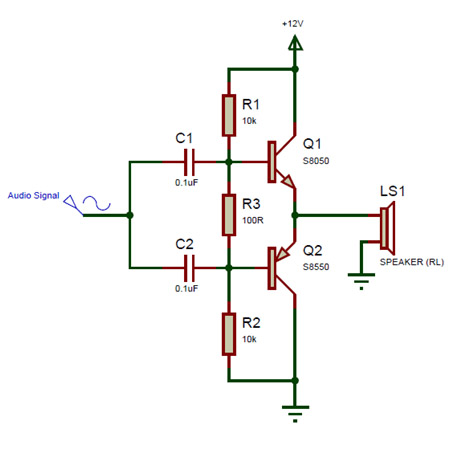

Amplifiers: Used in audio and RF amplifiers.
Switching Circuits: Employed as a switch to control other components.
Oscillators: Utilized in signal generation circuits.
Voltage Regulators: Incorporated in voltage regulation circuits.
4. Where to Use It:
The S8050 is suitable for use in low-power applications where a small, reliable transistor is required. Its compact TO-92 package makes it easy to integrate into different circuit designs. Commonly used in hobbyist projects and educational settings, the S8050 is a cost-effective choice for basic electronic applications.
5. How to Use It:
To use the S8050 NPN transistor, follow these general steps:
Identify the Pins: Connect the collector, base, and emitter to the corresponding pins on the transistor.
Apply Voltage: Provide the necessary voltage to the collector and emitter, and apply a small current to the base to control the flow of current from collector to emitter.
Configure as a Switch or Amplifier: Depending on your application, configure the transistor as a switch or an amplifier by adjusting the biasing conditions.
6. Equivalent Parts:
Several equivalent parts can be substituted for the S8050, including the S8550, 2N3904, BC547, and BC337. However, it's essential to check the specifications to ensure compatibility with your specific circuit requirements.
7. Manufacturer and Package:
The S8050 NPN transistor is commonly manufactured by multiple companies, including Fairchild Semiconductor, STMicroelectronics, and ON Semiconductor. It is available in the popular TO-92 package, providing ease of handling and compatibility with various circuit layouts.
The S8050 NPN transistor is a versatile component with a range of applications in electronic circuits. Its simplicity, reliability, and affordability make it a favorite among hobbyists and professionals alike. Understanding its pinout, specifications, and applications empowers electronics enthusiasts to make effective use of this fundamental building block in electronic design. Whether you're amplifying signals, switching components, or building oscillators, the S8050 has a place in your toolkit.
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Frequently Asked Questions (FAQs)
What is the S8050 NPN transistor, and what does NPN mean?
The S8050 is an NPN (Negative-Positive-Negative) bipolar junction transistor. NPN refers to the arrangement of the semiconductor layers within the transistor.
What is the pinout of the S8050 transistor?
The S8050 has three pins: Collector (Pin 1), Base (Pin 2), and Emitter (Pin 3).
What are the voltage ratings of the S8050 NPN transistor?
Voltage ratings include Collector-Base Voltage (VCBO) of 40V, Collector-Emitter Voltage (VCEO) of 25V, and Emitter-Base Voltage (VEBO) of 5V.
What are the current ratings for the S8050 transistor?
The S8050 has a Collector Current (IC) rating of 0.5A and a Power Dissipation (PD) rating of 625mW.
What are the typical applications of the S8050 NPN transistor?
Common applications include amplifiers, switching circuits, oscillators, and voltage regulators.
Where is the S8050 NPN transistor commonly used?
It is frequently used in low-power electronic applications, hobbyist projects, and educational settings.
How can I identify the collector, base, and emitter pins on the S8050 transistor?
Pin 1 is the Collector (C), Pin 2 is the Base (B), and Pin 3 is the Emitter (E).
What are the equivalent parts that can be substituted for the S8050?
Equivalent parts include the S8550, 2N3904, BC547, and BC337. However, it's crucial to check specifications for compatibility.
How do I use the S8050 NPN transistor in a circuit?
Steps include identifying the pins, applying voltage to the collector and emitter, and providing a small current to the base. Configuration depends on whether it's used as a switch or amplifier.
Which manufacturers produce the S8050 NPN transistor, and in what package is it available?
The S8050 is manufactured by companies like Fairchild Semiconductor, STMicroelectronics, and ON Semiconductor. It is commonly available in the TO-92 package.
Can the S8050 be used in high-power applications?
No, the S8050 is generally suited for low-power applications due to its limited current and power ratings.
Are there any specific precautions or considerations when using the S8050 NPN transistor?
Consider the voltage and current requirements of your application, and ensure that the S8050's ratings align with the needs of your circuit. Always refer to the datasheet for accurate information.
