    Compare Image Name Manufacturer Pricing(USD) Quantity Weight(Kg) Size(LxWxH) Datasheet Factory Lead Time Material Published Series Part Status Moisture Sensitivity Level (MSL) RoHS Status Height Mounting Type Type Thread/Screw/Hole Size Length - Center to Center

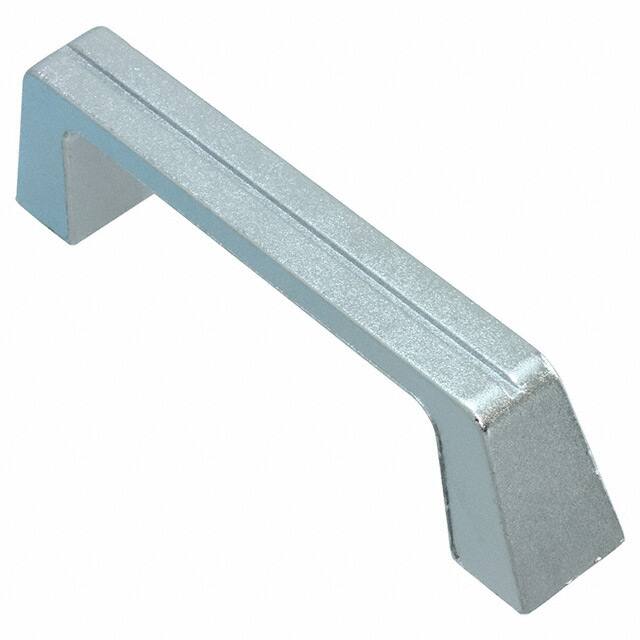

    08511 08511 Essentra Access Solutions 0.0000
    RFQ

    Min: 1

    Mult: 1

    		 0.00000000 download Zamak, Chrome Plated Mesan Active 1 (Unlimited) RoHS Compliant 0.787 20.00mm Screw Holes, Back Drawer, Type M4 Thread 2.520 64.00mm

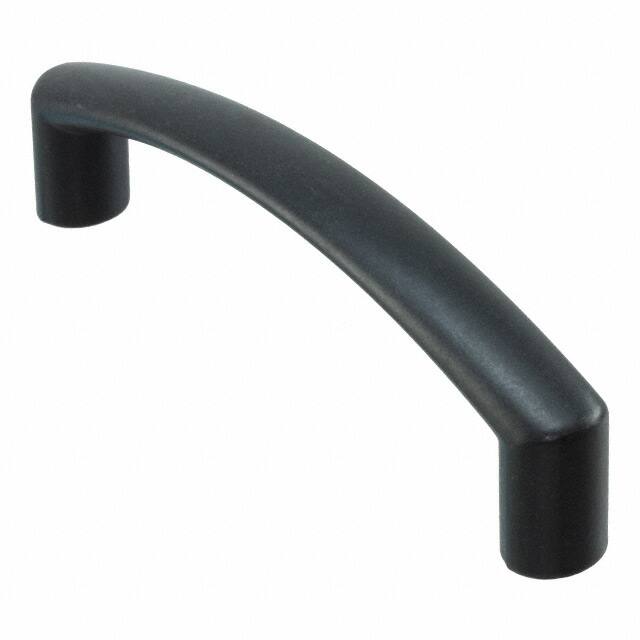

    08412 08412 Essentra Access Solutions 0.0000
    RFQ

    Min: 1

    Mult: 1

    		 0.00000000 download Zamak, Black Coating Mesan Active 1 (Unlimited) RoHS Compliant 1.122 28.50mm Screw Holes, Back Drawer, Type M4 Thread 3.780 96.00mm

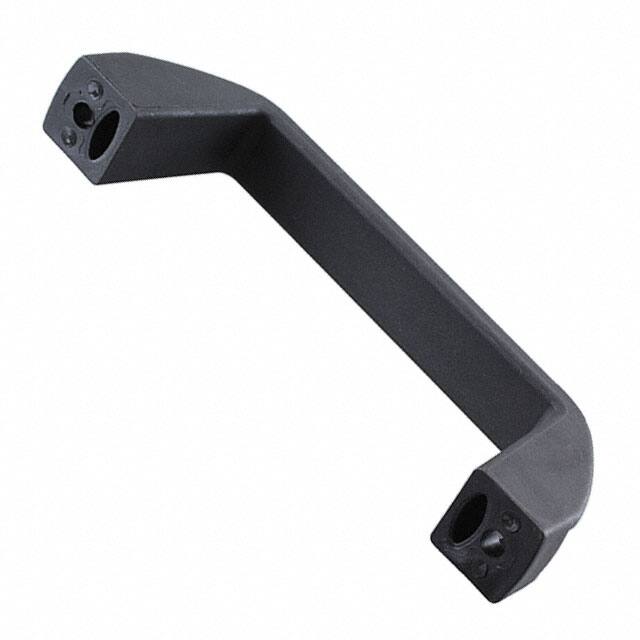

    1861 1861 Essentra Access Solutions 0.0000
    RFQ

    Min: 1

    Mult: 1

    		 0.00000000 download Polyamide Mesan Active 1 (Unlimited) RoHS Compliant 2.106 53.50mm Screw Holes, Back Instrumentation 5.984 152.00mm

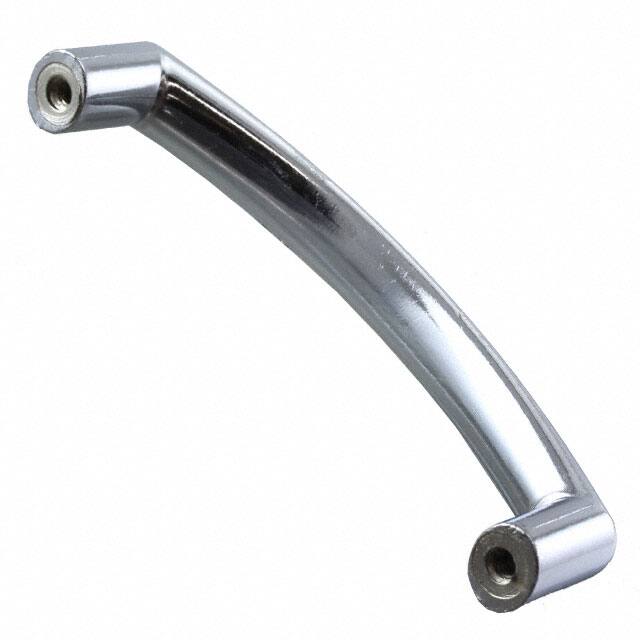

    08411 08411 Essentra Access Solutions 0.0000
    RFQ

    Min: 1

    Mult: 1

    		 0.00000000 download Zamak, Chrome Plated Mesan Active 1 (Unlimited) RoHS Compliant 1.122 28.50mm Screw Holes, Back Drawer, Type M4 Thread 3.780 96.00mm

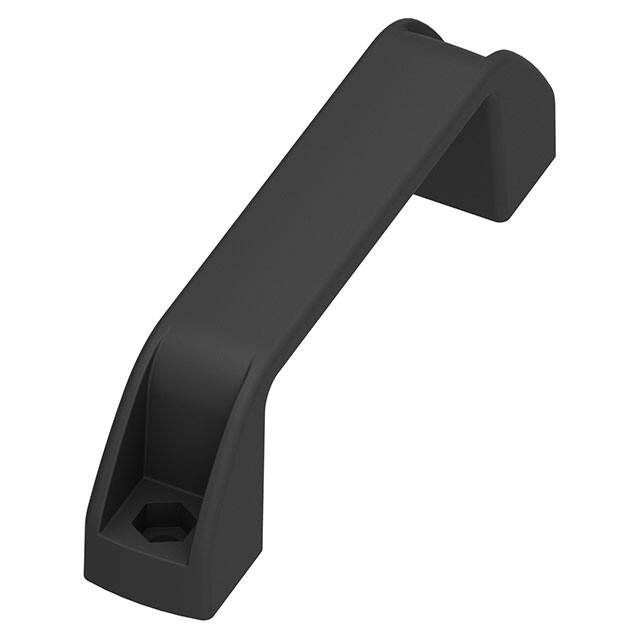

    0861 0861 Essentra Access Solutions 0.0000
    RFQ

    Min: 1

    Mult: 1

    		 0.00000000 download Polyamide Mesan Active 1 (Unlimited) RoHS Compliant 1.575 40.00mm Screw Holes, Back Instrumentation 4.803 122.00mm
    1845740100 1845740100 Essentra Access Solutions 0.0000
    RFQ

    Min: 1

    Mult: 1

    		 0.00000000 8 Weeks Aluminum Active 1 (Unlimited) RoHS Compliant 1.575 40.01mm Screw Holes, Back Instrumentation M5 Thread 3.937 100.00mm

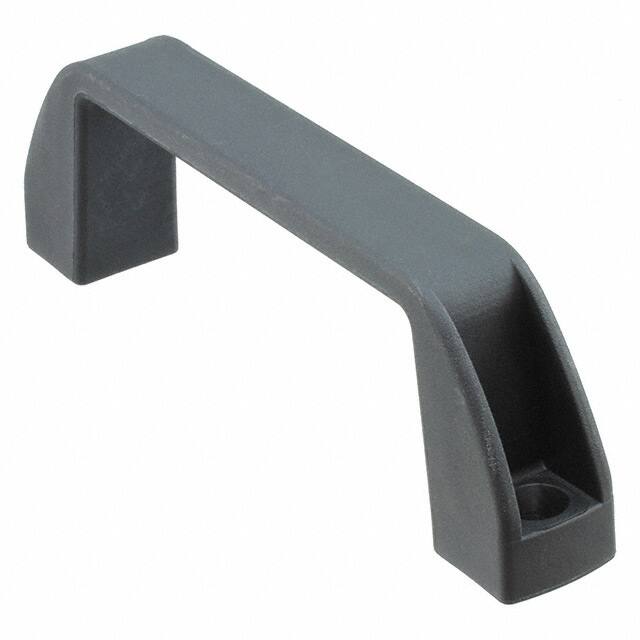

    1862 1862 Essentra Access Solutions 0.0000
    RFQ

    Min: 1

    Mult: 1

    		 0.00000000 download Polyamide Mesan Active 1 (Unlimited) RoHS Compliant 2.106 53.50mm Screw Holes, Back Instrumentation 5.984 152.00mm

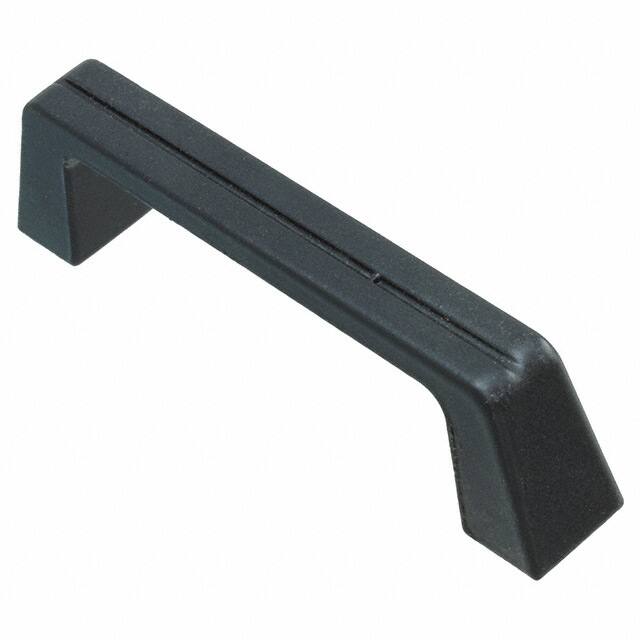

    08512 08512 Essentra Access Solutions 0.0000
    RFQ

    Min: 1

    Mult: 1

    		 0.00000000 download Zamak, Black Coating Mesan Active 1 (Unlimited) RoHS Compliant 0.787 20.00mm Screw Holes, Back Drawer, Type M4 Thread 2.520 64.00mm

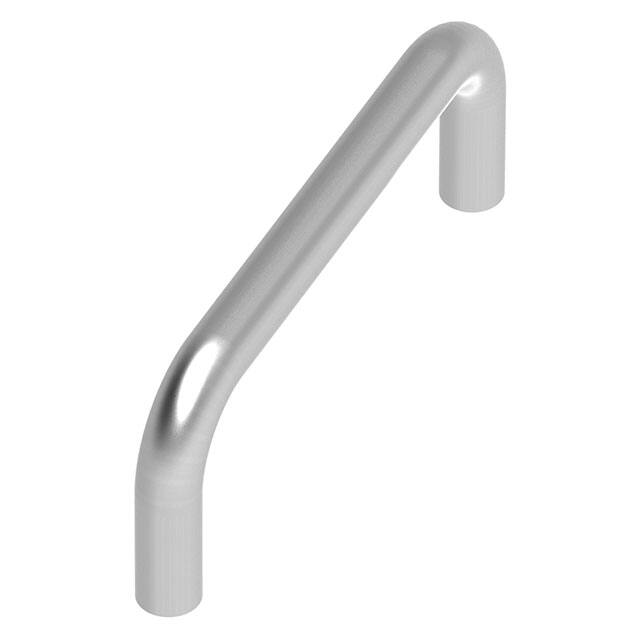

    18440 18440 Essentra Access Solutions 0.0000
    RFQ

    Min: 1

    Mult: 1

    		 0.00000000 download Stainless Steel Mesan Obsolete 1 (Unlimited) 1.575 40.00mm Screw Holes, Back Drawer, Type M5 Thread 3.937 100.00mm
    0862 0862 Essentra Access Solutions 0.0000
    RFQ

    Min: 1

    Mult: 1

    		 0.00000000 download Polyamide Mesan Active 1 (Unlimited) RoHS Compliant 1.575 40.00mm Screw Holes, Back Instrumentation 4.803 122.00mm

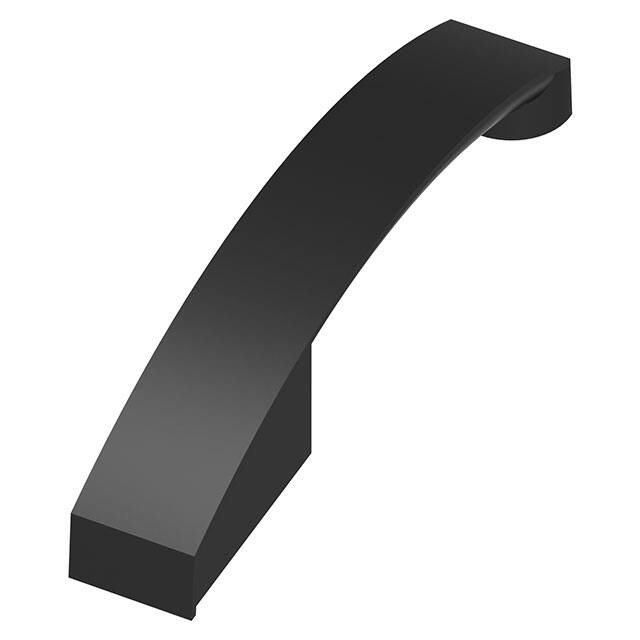

    286 286 Essentra Access Solutions 0.0000
    RFQ

    Min: 1

    Mult: 1

    		 0.00000000 download Polyamide Mesan Active 1 (Unlimited) RoHS Compliant 1.575 40.00mm Screw Holes, Back Instrumentation 6.299 160.00mm
    18461 18461 Essentra Access Solutions 0.0000
    RFQ

    Min: 1

    Mult: 1

    		 0.00000000 download Steel, Chrome Plated 2016 Mesan Active 1 (Unlimited) RoHS Compliant 1.575 40.00mm Screw Holes, Back Drawer, Type M5 Thread 3.937 100.00mm
    18457 18457 Essentra Access Solutions 0.0000
    RFQ

    Min: 1

    Mult: 1

    		 0.00000000 download Aluminum 2016 Mesan Obsolete 1 (Unlimited) 1.575 40.00mm Screw Holes, Back Drawer, Type M5 Thread 3.937 100.00mm
