ADL5541ACPZ-R7
ADL5541ACPZ-R7
84-ADL5541ACPZ-R7

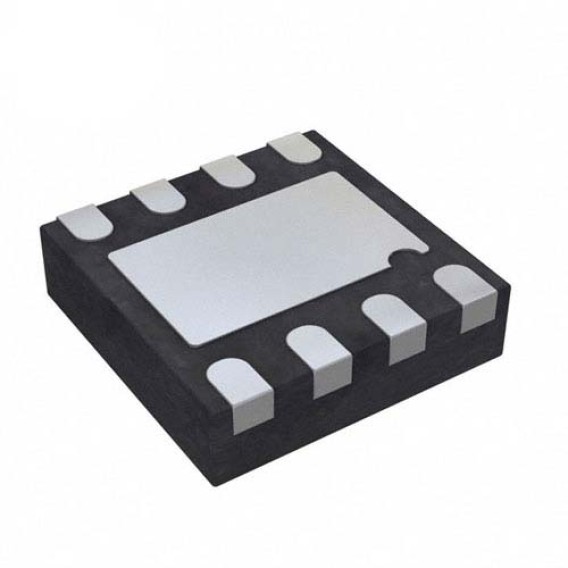

8-WFDFN Exposed Pad, CSP
ADL5541ACPZ-R7 datasheet pdf and RF Amplifiers product details from Analog Devices Inc. stock available at HK JDW
In Stock : 835
Share
Please send RFQ, we will respond immediately.
Product Details
Purchasing and Inquiry
Introducing the ADL5541ACPZ-R7 high gain wideband RF/IF amplifier - the ultimate solution for high performance signal amplification in a variety of applications.
Describe:
The ADL5541ACPZ-R7 is a versatile fully differential amplifier designed to provide high gain and broadband performance for a variety of RF (radio frequency) and IF (intermediate frequency) applications. Featuring excellent linearity, high integration, and low noise figure, the amplifier sets a new standard in signal amplification technology.
Feature:
1. High-gain performance: The ADL5541ACPZ-R7 amplifier provides an impressive 22 dB of gain, ensuring optimal signal amplification with minimal distortion. This high gain capability makes it suitable for applications where weak signals require significant amplification.
2. Broadband operation: The amplifier operates over a wide frequency range from 30 MHz to 6 GHz. Its ability to handle a wide range of frequencies makes it ideal for a wide variety of applications in the RF and IF areas. Whether used in wireless communication systems or radar applications, the ADL5541ACPZ-R7 provides excellent performance across frequency ranges.
3. Low Noise Figure: The amplifier has a noise figure as low as 2.9 dB at 2 GHz, ensuring minimal degradation of the signal-to-noise ratio. Its ability to amplify weak signals while maintaining excellent signal integrity makes it ideal for applications requiring high sensitivity, such as satellite communication systems and instrumentation.
4. Fully differential architecture: The ADL5541ACPZ-R7 uses a fully differential architecture that provides common-mode rejection, rejection of unwanted signals and noise interference. This ensures clearer and more accurate signal amplification for excellent overall performance.
Application:
1. Communication systems: The ADL5541ACPZ-R7 amplifier is widely used in wireless communication systems, including cellular networks, Wi-Fi routers, and point-to-point communication links. Its high gain performance and wideband capabilities make it an excellent choice for enhancing signal strength and range while maintaining signal quality.
2. Radar systems: In radar applications, accurate and reliable signal detection is critical. The ADL5541ACPZ-R7 helps amplify radar signals with high fidelity, improving target detection and resolution. Its compatibility with a wide frequency range allows it to be used in high-frequency and ultra-wideband radar systems.
3. Test and measurement equipment: The amplifier's low noise figure and high linearity make it an ideal solution for a variety of test and measurement applications. From spectrum analyzers to signal generators, the ADL5541ACPZ-R7 enhances the performance of these instruments, ensuring accurate measurements and reliable analysis.
4. Satellite communication system: Satellite communication system requires sensitive and efficient signal amplification to ensure reliable data transmission. The low noise figure and high gain of the ADL5541ACPZ-R7 make it an excellent choice for satellite communications applications, providing enhanced signal strength and improved link quality.
In summary, the ADL5541ACPZ-R7 high-gain wideband RF/IF amplifier is a state-of-the-art solution for amplifying signals at a wide range of frequencies. Impressive features such as high gain, wideband operation, low noise figure, and fully differential architecture make this amplifier widely applicable in various industries. From communications systems to radar applications and test and measurement equipment, the ADL5541ACPZ-R7 sets a new standard in signal amplification, delivering outstanding performance, reliability, and versatility.
