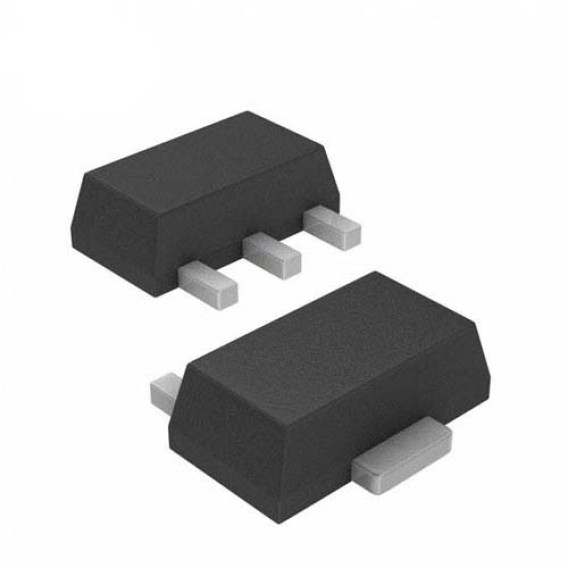

ADL5601ARKZ-R7
ADL5601ARKZ-R7
84-ADL5601ARKZ-R7
TO-243AA
ADL5601ARKZ-R7 datasheet pdf and RF Amplifiers product details from Analog Devices Inc. stock available at HK JDW
In Stock : 4073
Share
Please send RFQ, we will respond immediately.
Product Details
Purchasing and Inquiry
Product Description: ADL5601ARKZ-R7
The ADL5601ARKZ-R7 is a high-performance, digitally controlled variable gain amplifier (DVGA) designed for various wireless communication applications. This integrated circuit offers high linearity, low distortion, and excellent gain control, making it well-suited for applications that require precise signal amplification and gain adjustment.
Features:
Variable Gain Control: The ADL5601ARKZ-R7 provides digitally controlled variable gain, allowing for precise and flexible signal amplification adjustments.
High Linearity: This variable gain amplifier exhibits high linearity, ensuring minimal distortion and preserving signal quality during amplification.
Low Noise Figure: The IC features a low noise figure, reducing noise contribution to the amplified signal and improving overall signal-to-noise ratio.
Wide Frequency Range: The ADL5601ARKZ-R7 operates over a wide frequency range, making it suitable for various wireless communication systems.
Serial Interface: The device includes a serial interface for easy control and programming of the gain settings.
Applications:
The ADL5601ARKZ-R7 variable gain amplifier is commonly used in wireless communication systems and other applications that require precise signal amplification and gain control, including:
Cellular Base Stations: It finds applications in cellular base stations for amplifying signals from antennas and providing gain control to optimize receiver performance.
Wireless Transceivers: The variable gain amplifier is used in wireless transceivers for gain adjustment to optimize signal reception and transmission.
RF Signal Chains: It is employed in RF signal chains of communication systems to enhance signal strength and adjust gain levels as needed.
Radar Systems: The ADL5601ARKZ-R7 is suitable for radar systems where variable gain is required for signal processing and detection.
Satellite Communication: It finds applications in satellite communication systems for gain control and signal amplification in both uplink and downlink paths.
In summary, the ADL5601ARKZ-R7 is a high-performance variable gain amplifier designed for wireless communication and other RF applications that demand precise signal amplification and gain control. Whether you are working on cellular base stations, wireless transceivers, radar systems, satellite communication, or other RF signal processing tasks, this DVGA provides high linearity, low noise, and flexible gain control, contributing to the overall performance and efficiency of your communication systems.
