  • CSD16322Q5C

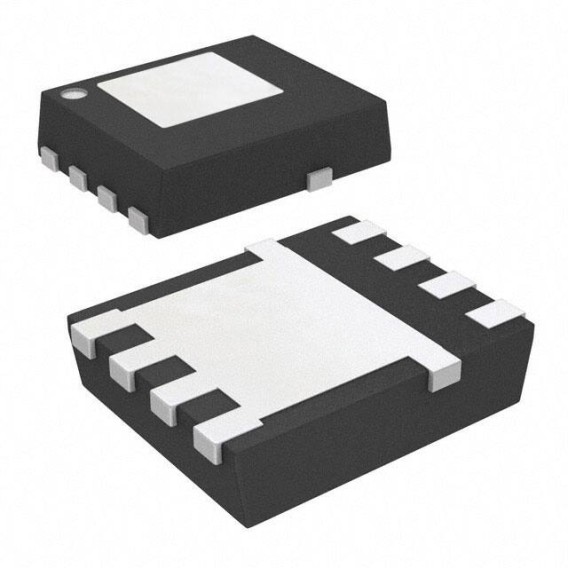

CSD16322Q5C

advertisement

Manufacturer No:

CSD16322Q5C

Manufacturer:

Texas Instruments

HK JDW NO:

815-CSD16322Q5C

Package:

8-PowerTDFN

Datasheet:

CSD16322Q5C

Description:

CSD16322Q5C datasheet pdf and Transistors - FETs, MOSFETs - Single product details from Texas Instruments stock available at HK JDW

Quantity:

In Stock : 999

Share

Please send RFQ, we will respond immediately.

* Contact Name

* Business Email

* Company Name

* Country

* Quantity

Product Details

Purchasing and Inquiry

CSD16322Q5C   Description



 The NexFET Power MOSFET is designed to minimize loss in power conversion applications and is optimized for 5V gate drive applications.




CSD16322Q5C    FEATURES


DualCoolM Package SON 5x6mm

Optimized for Two Sided Cooling

Optimized for 5V Gate Drive

Ultralow Qg and Qgd

Low Thermal Resistance

Avalanche Rated

Pb Free Terminal Plating

RoHS Compliant and Halogen Free


CSD16322Q5C     APPLICATIONS


Point-of-Load Synchronous Buck in Networking,Telecomand Computing Systems
