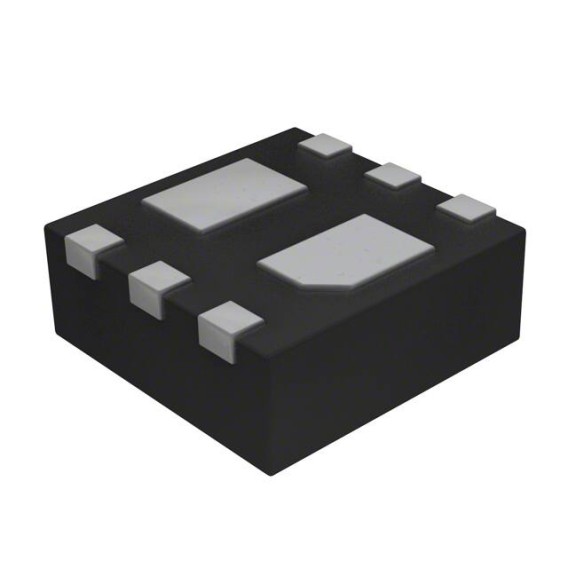

CSD85301Q2
CSD85301Q2
815-CSD85301Q2
6-WDFN Exposed Pad
CSD85301Q2 datasheet pdf and Transistors - FETs, MOSFETs - Arrays product details from Texas Instruments stock available at HK JDW
In Stock : 999
Share
Please send RFQ, we will respond immediately.
Product Details
Purchasing and Inquiry
CSD85301Q2 Description
The CSD8530102 is a 20V23mQ N-Channe device in SON2X2 mm plastic package and dual independent MOSFET. The two FET are designed as half-bridge structures for synchronous buck and other power applications. In addition, the device can be used in adapters, USB input protection and battery charging applications. The dual field effect transistor has a low drain-to-source turn-on resistance that minimizes loss and loss.
There are fewer parts with limited space.
CSD85301Q2 Features
Low On-Resistance
Dual Independent MOSFETs
Space Saving SON2x2 mm Plastic Package
Optimized for 5 V Gate Driver
Avalanche Rated
Pb and Halogen Free
RoHS Compliant
CSD85301Q2 Applications
Point-of-Load Synchronous Buck Converter for Applications in NetworkingTelecom.and Computing Systems
Adaptor or USB Input Protection for Notebook PCs and Tablets
Battery Protection
