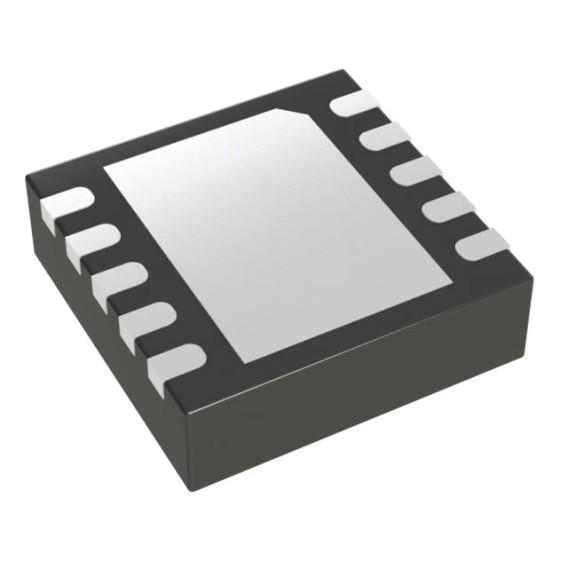

MLX90412LLW-BAA-042-RE

Description:

The L-grade version of the MLX90412 operates over a supply voltage range from 3.5 V to 32 V, and is robust up to 40 V. With an operating temperature up to 150°C, it is a perfect fit for any automotive fan, blower or pump application directly on the 12 V boardnet, or even the 24 V boardnet for trucks. With current limit options from 1.5 A up to 2.2 A, the MLX90412 drives automotive applications up to 20 W in a safe and cost effective way, without risk for overheating the device or the motor coil, in complement to the MLX90411 which covers applications up to 7W. The closed-loop speed control limits the speed variation to less than +/-5% regardless of the load condition, battery voltage variation, or fan production tolerances over the full temperature range. Together with the adaptive low noise commutation it enables industry standard efficiency and acoustic performance. Multiple commutation options are available, including a sinewave option offering unprecedented low levels of vibration.

Main Features:

All-in-one fan driver, including high-sensitivity Hall-effect sensor

Up to 2.2 A motor current

Adaptive commutuation for best in class efficiency over the full speed range for any fan design

Commutation options

 • Maximum torque

 • Very low acoustic noise

 PWM control input

• Standby mode

• Open loop / closed loop speed control (+/-1%)

Operating supply range from 3.5 V to 32 V

Operating junction temperature from -40 to 150°C

 • Locked Rotor Protection (LRP) (Programmable

 • Temperature Shutdown (TSD)

Applications:

Air pump, water pump, axial fans, radial blower and cross blower

Seat blowers

DC/DC converter cooling fan or pump

Battery cooling fan
