NCP161AMX330TBG
NCP161AMX330TBG
598-NCP161AMX330TBG

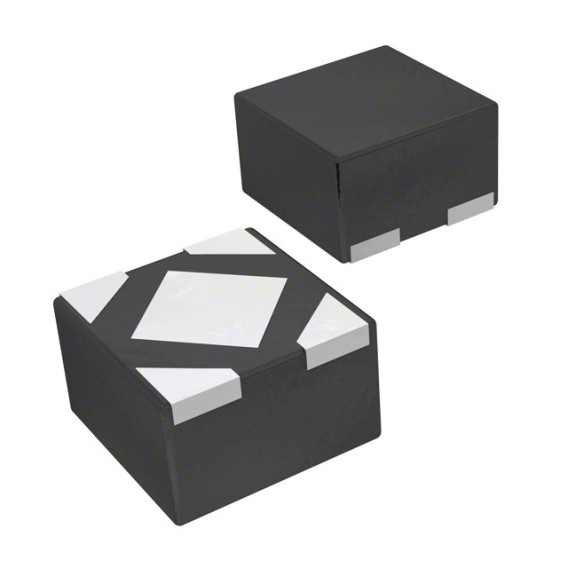

4-XDFN Exposed Pad
Enable Fixed 0.65mm Gold PMIC 4-XDFN Exposed Pad
In Stock : 6147
Share
Please send RFQ, we will respond immediately.
Product Details
Purchasing and Inquiry
NCP161
The NCP161 is a linear regulator capable of supplying 450 mA output current. Designed to meet the requirements of RF and analog circuits, the NCP161 device provides low noise, high PSRR, low quiescent current, and very good load/line transients.
The device is designed to work with a 1μF input and a 1 μF output ceramic capacitor. It is available in two thickness ultra−small 0.35P, 0.65 mm x 0.65 mm Chip Scale Package (CSP) and XDFN4 0.65P, 1 mm x 1 mm.
Features
Operating Input Voltage Range: 1.9 V to 5.5 V
Available in Fixed Voltage Option: 1.8 V to 5.14 V
±2% Accuracy Over Load/Temperature
Ultra Low Quiescent Current Typ. 18 μA
Standby Current: Typ. 0.1 μA • Very Low Dropout: 150 mV at 450 mA
Ultra High PSRR: Typ. 98 dB at 20 mA, f = 1 kHz
Ultra Low Noise: 10 μVRMS
Stable with a 1 μF Small Case Size Ceramic Capacitors
Available in WLCSP4 0.65 mm x 0.65 mm x 0.4 mm
WLCSP4 0.65 mm x 0.65 mm x 0.33 mm
XDFN4 1 mm x 1 mm x 0.4 mm
SOT23−5 2.9 mm x 2.8 mm x 1.2 mm
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Typical Applications
Battery−powered Equipment
Wireless LAN Devices
Smartphones, Tablets
Cameras, DVRs, STB and Camcorders
