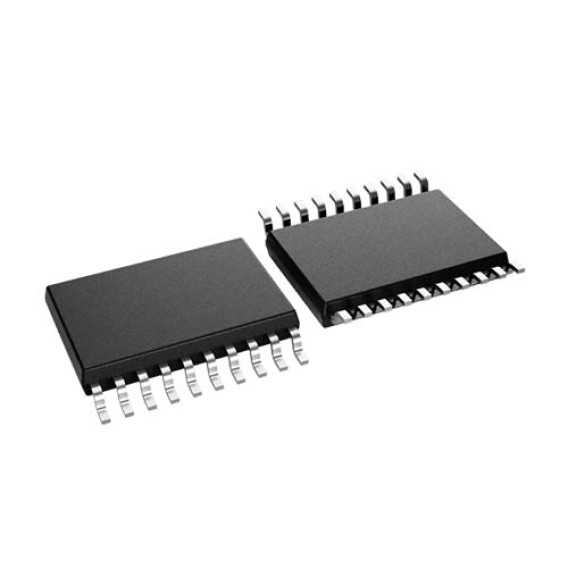

TLC59108IPWR
TLC59108IPWR
feilidi-TLC59108IPWR
20-TSSOP (0.173, 4.40mm Width)
3.3/5V 0.65mm Gold PMIC TLC59108 20 Pin 25MHz 5V 20-TSSOP (0.173, 4.40mm Width)
Unit Price: $8.2061
Ext Price: $8.2061
In Stock : 2000
Share
Qty
Unit Price
Ext Price
-
10
$7.74
$77.42
-
100
$7.30
$730.34
-
500
$6.89
$3,445.00
-
1000
$6.50
$6,500.00
Not the price you want? Send RFQ Now and we'll contact you ASAP.
Product Details
Purchasing and Inquiry
TLC59108IPWR Description
The TLC59108IPWR is an 8-bit LED driver operated by the I2C bus and designed for red/green/blue/amber (RGBA) color mixing and backlighting. Each LED output has its own fixed-frequency individual PWM controller with an 8-bit resolution (256 steps) that runs at 97kHz and a duty cycle range of 0 to 99.6%. Each LED can be tuned to a different brightness level using the individual PWM controller. A group PWM controller with an additional 8-bit resolution (256 steps) has a fixed frequency of 190Hz and an adjustable frequency of 24Hz to once every 10.73 seconds, with a duty cycle of 0 to 99.6%. The group PWM controller dims or blinks all of the LEDs at the same time with the same value. At both individual and group PWM controller levels, each LED output can be turned off, on (no PWM control), or set to its individual PWM controller value. Up to 14 devices can be connected to the same bus using four hardware address pins.
TLC59108IPWR Features
Active-low reset
Supports hot insertion
No glitch on power-up
Internal power-on reset
Green product and no Sb/Br
17V Maximum output voltage
Noise filter on SCL/SDA inputs
8 Constant-current output channels
Software enable and disable for I2C bus address
Constant output current adjusted through an external resistor
25MHz internal oscillator requires no external components
The software reset feature (SWRST Call) allows the device to be reset through the I2C bus
TLC59108IPWR Applications
Industrial
LED Lighting
Hobby & Education
