| Compare | Image | Name | Manufacturer | Pricing(USD) | Quantity | Weight(Kg) | Size(LxWxH) | Datasheet | Factory Lead Time | Lifecycle Status | Mount | Packaging | Published | Series | Pbfree Code | Part Status | Moisture Sensitivity Level (MSL) | Number of Terminations | Termination | ECCN Code | Depth | ELV | Length | RoHS Status | Lead Free | Contact Material | Contact Plating | Number of Pins | Additional Feature | Height | Width | Mounting Type | Weight | Operating Temperature | Voltage - Rated AC | HTS Code | Packing Method | Physical Dimension | Max Current Rating | Max Voltage Rating (DC) | Coil Resistance | Reference Standard | Body Breadth | Termination Style | Throw Configuration | Sealing | Relay Type | Contact Current(AC)-Max | Operate Time | Release Time | Coil Power | Contact/Output Supply Type | Relay Action | Coil/Input Supply Type | Contact Current(DC)-Max | Coil Voltage | Dielectric Strength Between Open Contacts | Dielectric Strength Between Coil and Contacts | Characteristic Impedance | Input Switching Control Type | Operating Frequency-Max | Input Power-Max (CW) | Max Voltage Rating (AC) | VSWR | Contact (AC) Max Power Rating R Load | Switching Voltage | Coil Current | Coil Voltage (DC) | Insertion Loss (dB) | Coil Type | Contact Form | Must Operate Voltage | Must Release Voltage | Contact Voltage Rating (DC) | Switching Time | Isolation Max |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1462052-6 | TE Connectivity Potter & Brumfield Relays | 22.0682 |
Min: 1 Mult: 1 |
0.00000000 | download | 19 Weeks | ACTIVE (Last Updated: 5 days ago) | Surface Mount | Tape & Reel (TR) | 2008 | HF6, AXICOM | yes | Active | 3 (168 Hours) | 6 | PCB | EAR99 | 9.4mm | Compliant | 378.46mm | RoHS Compliant | Lead Free | Silver (Ag), Gold (Au) | Gold | 22 | RELEASE TIME TAKEN WITH DIODE IN PARALLEL | 10.5mm | 7.493mm | Surface Mount | 85.048569g | -55°C~85°C | 250V | 8536.49.00.50 | BOX; TAPE AND REEL | 15mm x 7.6mm x 10.6mm | 2A | 220V | 1.03kOhm | UL | 7.6 mm | Gull Wing | SPDT | IP67; RT3 | Relay | 2A | 5ms | 9 ms | 140mW | AC/DC | MOMENTARY | DC | 2A | 12VDC | 600 Vrms | 1000 Vrms | 50Ohm | Random | 6000MHz | 50W | 250V | 1.4 | 62.5VA@250VAC | 250VAC 220VDC -Max | 11.7mA | 12V | -0.15 dB | Non Latching | SPDT (1 Form C) | 9VDC | 1.2VDC | 220V | 17 ms | -30 dB |
-

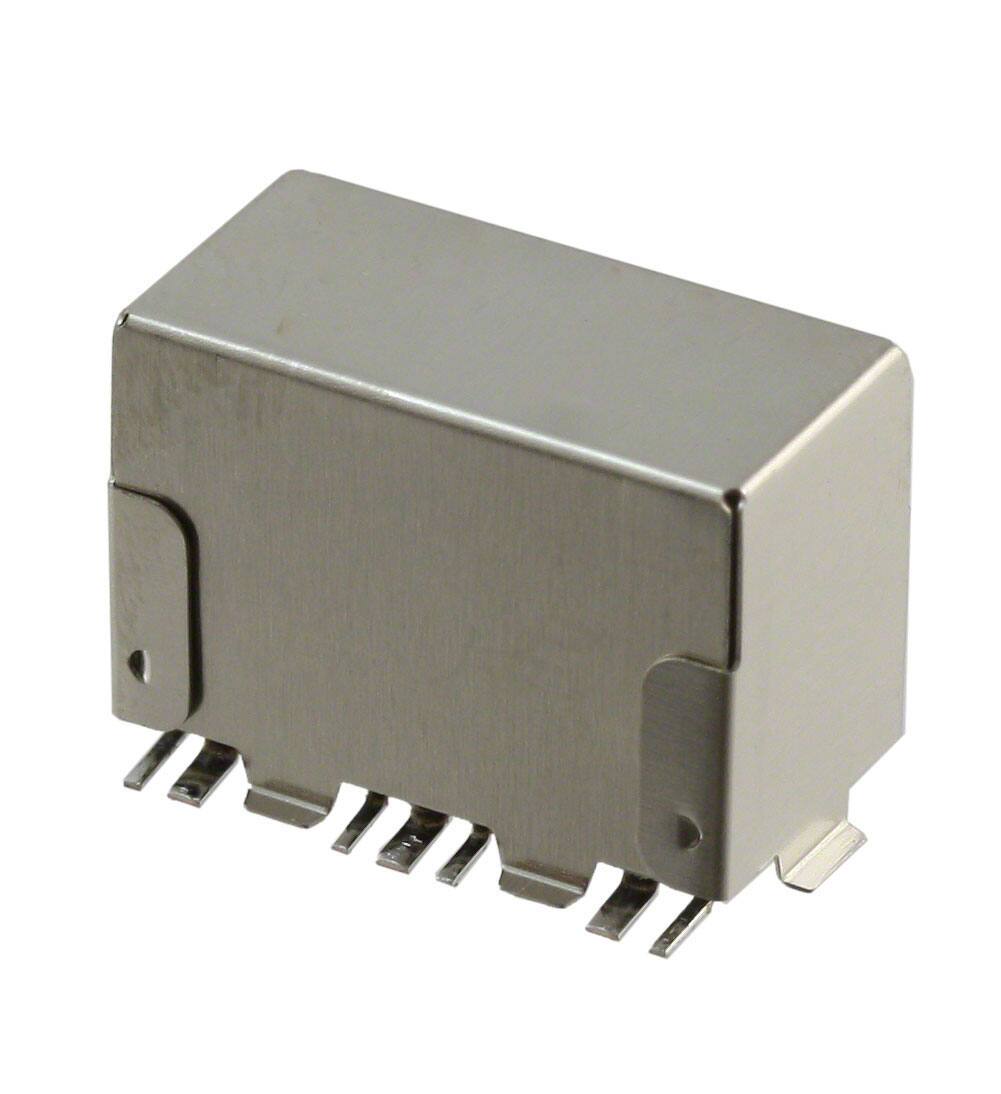

1462052-6 TE Connectivity Potter & Brumfield Relays
1462052-6 datasheet pdf and High Frequency (RF) Relays product details from TE Connectivity Potter & Brumfield Relays stock available at Utmel
Price: 22.0682
