Slide Switches

Name	Manufacturer	Quantity	Datasheet	Factory Lead Time	Lifecycle Status	Mount	Housing Material	Packaging	Published	Series	Part Status	Moisture Sensitivity Level (MSL)	Termination	Number of Positions	ECCN Code	Max Operating Temperature	Min Operating Temperature	Orientation	Depth	ELV	Number of Poles	Length	RoHS Status	Flammability Rating	Lead Free	Contact Material	Contact Plating	Voltage - Rated	Current Rating	Radiation Hardening	Number of Pins	Additional Feature	Package / Case	Reach Compliance Code	Width	Mounting Type	Operating Temperature	Voltage - Rated DC	Voltage - Rated AC	HTS Code	Packing Method	Contact Resistance	Insulation Resistance	Max Current Rating	Max Voltage Rating (DC)	Power Rating	Type	JESD-609 Code	Surface Mount	Mounting Feature	Body Length or Diameter	Body Breadth	Body Height	Termination Style	Contact Style	Dielectric Withstanding Voltage	Length - Termination	Feature	Current Rating (Amps)	Throw Configuration	Switch Type	Sealing	Contact Current(AC)-Max	Contact (AC) Max Rating R Load	Contact Voltage(AC)-Max	Contact Current(DC)-Max	Contact Voltage(DC)-Max	Contact (DC) Max Rating R Load	PCB Hole Count	Contact (DC) Max Power Rating R Load	Electrical Life	Switch Function	Max Voltage Rating (AC)	End Contact Plating	Contact Current Rating	Length - Tail	Contact Finish	Illumination Type	Actuator Type	Mechanical Life	Circuit	Actuator Color	Actuator Length	Actuator Material	Center Contact Plating	Contact Timing	Operating Force	Solderability	Washability	Switch Travel
3-1437577-0	TE Connectivity ALCOSWITCH Switches	RFQ Min: 1 Mult: 1	download			Through Hole		Bulk	2016	SLS	Obsolete	Not Applicable	PC Pin	4	EAR99								Non-RoHS Compliant			Copper Alloy			150mA					unknown		Through Hole, Right Angle	-10°C~85°C	12V	125V	8536.50.90.50								e4			18.2mm		5.58mm	PC Pin	Non-Shorting			Epoxy Sealed Terminals	250mA AC 150mA DC		SLIDE SWITCH		0.25A	.25A@125VAC		0.15A					6,000 Cycles	On-On-On-On				3.3mm	Silver		Standard	10,000 Cycles	SP4T		5.00mm	Polybutylene Terephthalate (PBT)		Non-Shorting (BBM)	250gf			3.20mm
1825270-2	TE Connectivity ALCOSWITCH Switches	RFQ Min: 1 Mult: 1	download	17 Weeks		Brackets, Through Hole		Bulk	2010	MSS	Active		PC Pin, PC Pins			85°C	-20°C	Right Angle	24.1mm			22mm	RoHS Compliant	UL94 V-0	Lead Free	Copper Alloy	Gold			No	3					Through Hole, Right Angle	-20°C~85°C	20V	20V			30mOhm			20V									PC Pin	Shorting			Epoxy Sealed Terminals	0.4VA AC/DC	4P3T											15,000 Cycles	On-On-On	20V		20mA		Gold		Standard	15,000 Cycles	4P3T		14.00mm	Polyoxymethylene (Acetal) (POM)		Shorting (MBB)	600gf			2.00mm
2-1437577-4	TE Connectivity ALCOSWITCH Switches	RFQ Min: 1 Mult: 1	download	3 Weeks		Through Hole		Bulk	2004	SLS	Obsolete	Not Applicable	PC Pin	3	EAR99			Straight		Non-Compliant			Non-RoHS Compliant			Copper Alloy			150mA					unknown		Through Hole	-10°C~85°C	12V	125V			20mOhm			12V			e4			15.1mm	5.84 mm	5.99mm	PC Pin	Non-Shorting			Epoxy Sealed Terminals	250mA AC 150mA DC		SLIDE SWITCH		0.25A	.25A@125VAC		0.15A		.15A@12VDC			6,000 Cycles	On-On-On	125V			3.3mm	Silver		Standard	10,000 Cycles	SP3T		5.00mm	Polybutylene Terephthalate (PBT)		Non-Shorting (BBM)	250gf			3.20mm
MHS122RA	TE Connectivity ALCOSWITCH Switches	RFQ Min: 1 Mult: 1	download					Bulk	2016	MHS	Obsolete	Not Applicable													Lead Free	Copper Alloy	Silver									Through Hole, Right Angle	-20°C~85°C		125V															PC Pin				Epoxy Sealed Terminals	300mA AC												15,000 Cycles	On-On					Silver		Standard	15,000 Cycles	SPDT		4.50mm	Polyoxymethylene (Acetal) (POM)		Shorting (MBB)	600gf			4.00mm
1825264-2	TE Connectivity ALCOSWITCH Switches	RFQ Min: 1 Mult: 1	download	17 Weeks	ACTIVE (Last Updated: 3 days ago)	Through Hole		Bulk	2005	MSS	Active	Not Applicable	PC Pin, PC Pins	2		85°C	-20°C	Vertical	9.4mm	Compliant		15.00124mm	RoHS Compliant	UL94 HB	Lead Free	Copper Alloy	Gold			No	2				9.40054mm	Through Hole	-20°C~85°C	20V	20V			30mOhm			20V		Switch							PC Pin	Shorting			Epoxy Sealed Terminals	0.4VA AC/DC	4PDT											15,000 Cycles	On-On	20V		300mA	2.794mm	Gold		Standard	15,000 Cycles	4PDT		8.00mm	Polyoxymethylene (Acetal) (POM)		Shorting (MBB)	600gf			2.00mm
MSS2225G	TE Connectivity ALCOSWITCH Switches	RFQ Min: 1 Mult: 1	download					Bulk	2004	MSS	Obsolete	Not Applicable			EAR99								Non-RoHS Compliant			Copper Alloy										Through Hole	-20°C~85°C		20V	8536.50.90.50									NO		14mm	6 mm	10mm	PC Pin				Epoxy Sealed Terminals	0.4VA AC/DC		SLIDE SWITCH	EPOXY TERMINAL SEALED	0.02A		20V	0.02A	20V				15,000 Cycles	On-On					Gold		Standard	15,000 Cycles	DPDT		5.41mm	Polyoxymethylene (Acetal) (POM)		Shorting (MBB)	600gf			2.00mm
STS250PC	TE Connectivity ALCOSWITCH Switches	RFQ Min: 1 Mult: 1	download			Through Hole		Bulk	1997	STS	Obsolete	Not Applicable	PC Pin	5				Vertical		Non-Compliant			Non-RoHS Compliant	UL94 HB	Contains Lead	Copper Alloy	Silver									Through Hole	-10°C~60°C		125V															PC Pin				Epoxy Sealed Terminals	300mA AC	DP5T																2.79mm	Silver		Standard	10,000 Cycles	DP5T		4.00mm	Polyoxymethylene (Acetal) (POM)		Shorting (MBB)	250gf			2.50mm
MSS4200R	TE Connectivity ALCOSWITCH Switches	RFQ Min: 1 Mult: 1	download	8 Weeks		Through Hole		Bulk	2004	MSS	Obsolete	Not Applicable	PC Pin	2		85°C	-20°C	Right Angle		Non-Compliant			Non-RoHS Compliant	UL94 V-0	Contains Lead	Copper Alloy	Silver									Through Hole, Right Angle	-20°C~85°C		125V			20mOhm												PC Pin				Epoxy Sealed Terminals	300mA AC	4PDT											15,000 Cycles	On-On	125V		300mA	3mm	Silver		Standard	15,000 Cycles	4PDT		7.00mm	Polyoxymethylene (Acetal) (POM)		Shorting (MBB)	600gf			2.00mm
SE1DGPC	TE Connectivity ALCOSWITCH Switches	RFQ Min: 1 Mult: 1	download	8 Weeks				Bulk	2004	SE	Obsolete	Not Applicable		2	EAR99								Non-RoHS Compliant		Contains Lead	Copper Alloy										Through Hole	-20°C~80°C		20V															PC Pin				IP67 - Dust Tight, Waterproof	0.4VA AC/DC		SLIDE SWITCH										10,000 Cycles	On-On					Gold		Standard	10,000 Cycles	SPDT		3.50mm			Non-Shorting (BBM)	100 ~ 500gf			2.20mm
1825032-4	TE Connectivity ALCOSWITCH Switches	RFQ Min: 1 Mult: 1	download	25 Weeks		PCB, Through Hole	Polyether	Bulk	2008	SE	Active		PC Pin, PC Pins			80°C	-20°C	Vertical	5mm			9.5mm	RoHS Compliant	UL94 V-0	Lead Free	Copper Alloy	Gold, Silver				3					Through Hole	-20°C~80°C	20V	20V			50mOhm		50mA	48V									PC Pin	Non-Shorting			IP67 - Dust Tight, Waterproof	0.4VA AC/DC	DPDT, SPDT											10,000 Cycles	On-Off-On	48V		50mA		Gold		Standard	10,000 Cycles	DPDT		3.50mm	Glass fibre		Non-Shorting (BBM)	100 ~ 500gf			2.20mm
MSSA2350	TE Connectivity ALCOSWITCH Switches	RFQ Min: 1 Mult: 1	download	16 Weeks				Bulk	2005	MSSA	Active												Non-RoHS Compliant			Copper Alloy										Through Hole	-20°C~85°C		125V															PC Pin				Epoxy Sealed Terminals	300mA AC												15,000 Cycles	On-On-On					Silver		Standard	15,000 Cycles	DP3T		10.41mm	Polyester		Shorting (MBB)	470gf			2.00mm
1825463-1	TE Connectivity ALCOSWITCH Switches	RFQ Min: 1 Mult: 1	download	42 Weeks				Tube	2011	ASE	Active												RoHS Compliant			Copper Alloy										Through Hole	-40°C~80°C		115V															PC Pin					300mA AC												15,000 Cycles	On-On-On					Silver		Standard	15,000 Cycles	4P3T		2.79mm	Polyamide (PA46), Nylon 4/6		Shorting (MBB)	800gf			2.67mm
MSS4350R	TE Connectivity ALCOSWITCH Switches	RFQ Min: 1 Mult: 1	download			Through Hole		Bulk	2004	MSS	Obsolete	Not Applicable	PC Pin	3	EAR99			Right Angle		Non-Compliant			Non-RoHS Compliant	UL94 V-0	Contains Lead	Copper Alloy								unknown		Through Hole, Right Angle	-20°C~85°C		20V															PC Pin				Epoxy Sealed Terminals	300mA AC		SLIDE SWITCH										15,000 Cycles	On-On-On	125V		300mA	3mm	Silver		Standard	15,000 Cycles	4P3T		14.00mm	Polyoxymethylene (Acetal) (POM)		Shorting (MBB)	600gf			2.00mm
SLS120	TE Connectivity ALCOSWITCH Switches	RFQ Min: 1 Mult: 1	download	8 Weeks				Bulk	2004	SLS	Obsolete	Not Applicable			EAR99					Non-Compliant			Non-RoHS Compliant		Contains Lead	Copper Alloy										Panel Mount	-20°C~85°C		125V															Solder Lug				Epoxy Sealed Terminals	500mA AC		SLIDE SWITCH										6,000 Cycles	On-On					Silver		Standard	10,000 Cycles	SPDT		4.90mm	Polybutylene Terephthalate (PBT)		Non-Shorting (BBM)	350gf			2.69mm

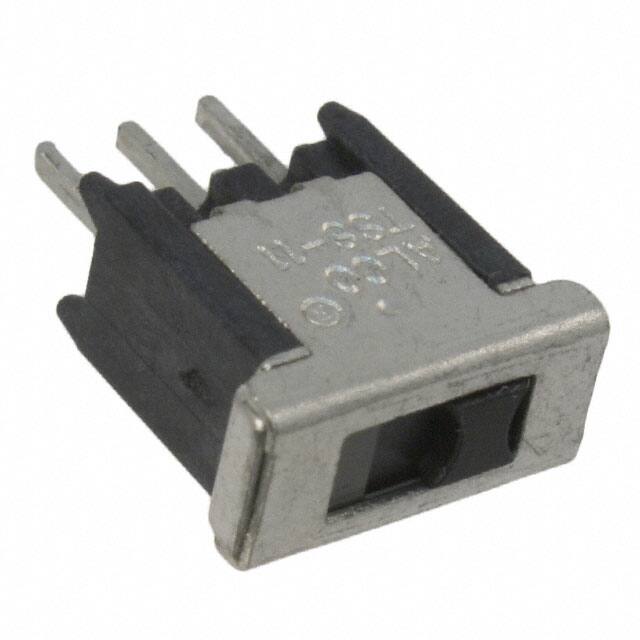

1571982-4	TE Connectivity ALCOSWITCH Switches	RFQ Min: 1 Mult: 1		19 Weeks	ACTIVE (Last Updated: 1 week ago)	Through Hole		Bulk	2008	TSS	Active	Not Applicable	PC Pin, SMD/SMT		EAR99			Vertical		Compliant		10.2mm	RoHS Compliant	UL94 V-0	Lead Free	Copper				No	2				5.23mm	Through Hole	-20°C~80°C	20V	20V	8536.50.90.50		20mOhm			20V		Switch						9.65mm	PC Pin	Non-Shorting			Epoxy Sealed Terminals	0.4VA AC/DC												60,000 Cycles	On-Off-On	20V			3.3mm	Gold		Standard	60,000 Cycles	SPDT		2.80mm	Polybutylene Terephthalate (PBT)		Non-Shorting (BBM)	150 ~ 600gf			3.05mm
1825164-1	TE Connectivity ALCOSWITCH Switches	RFQ Min: 1 Mult: 1	download	8 Weeks				Bulk	2007	STS	Obsolete	Not Applicable			EAR99								RoHS Compliant			Copper Alloy						LOW PROFILE		compliant		Through Hole	-10°C~60°C		125V	8536.50.90.50									NO		15.49mm	6.2 mm	5.22mm	PC Pin				Epoxy Sealed Terminals	300mA AC		SLIDE SWITCH	EPOXY TERMINAL SEALED	0.25A		125V						10000 Cycle(s)	On-On-On					Silver		Standard	10,000 Cycles	DP3T		4.00mm	Polyoxymethylene (Acetal) (POM)		Shorting (MBB)	250gf			2.50mm
MSSA1350R	TE Connectivity ALCOSWITCH Switches	RFQ Min: 1 Mult: 1	download	16 Weeks			COLD ROLLED STEEL	Bulk	2004	MSSA	Active	Not Applicable											Non-RoHS Compliant			Copper Alloy										Through Hole, Right Angle	-20°C~85°C		125V			0.02mOhm	1000000000Ohm						NO	THROUGH HOLE-RIGHT ANGLE	24.003mm	9.3472 mm	15.494mm	PC Pin		500VRMS V	0.138 inch	Epoxy Sealed Terminals	300mA AC										8	0.4VA@20VDC	15,000 Cycles	On-On-On		GOLD OVER NICKEL			Silver		Standard	15,000 Cycles	SP3T		9.02mm	Polyester	GOLD OVER NICKEL	Shorting (MBB)	470gf	WAVE	SOLVENT	2.00mm
1825161-2	TE Connectivity ALCOSWITCH Switches	RFQ Min: 1 Mult: 1	download	17 Weeks			STEEL	Bulk	2008	STS	Obsolete	Not Applicable		4	EAR99								RoHS Compliant			Copper Alloy						LOW PROFILE		compliant		Through Hole	-10°C~60°C		125V	8536.50.90.50		0.03mOhm	500000000Ohm						NO		18.01mm	6.1 mm	5.21mm	PC Pin		500VAC V	0.098 inch	Epoxy Sealed Terminals	300mA AC		SLIDE SWITCH	EPOXY TERMINAL SEALED	0.25A		125V				5		10000 Cycle(s)	On-On-On-On					Silver		Standard	10,000 Cycles	SP4T	BLACK	4.00mm	Polyoxymethylene (Acetal) (POM)		Shorting (MBB)	250gf	WAVE		2.50mm
4-1437581-7	TE Connectivity ALCOSWITCH Switches	RFQ Min: 1 Mult: 1		42 Weeks		Through Hole	Polychlorinated	Bulk	2006	ASE	Active		PC Pins			80°C	-40°C	Right Angle	13.72mm			27.94mm	RoHS Compliant				Silver									Through Hole, Right Angle	-40°C~80°C		115V			40mOhm		300mA										PC Pin					300mA AC	4P3T											15,000 Cycles	On-On-On	115V						Standard	15,000 Cycles	4P3T		5.84mm	Nylon		Shorting (MBB)	800gf			2.54mm
MSSA2350R	TE Connectivity ALCOSWITCH Switches	RFQ Min: 1 Mult: 1	download	16 Weeks	ACTIVE (Last Updated: 4 days ago)	Through Hole		Bulk	2004	MSSA	Active		PC Pin	3		85°C	-20°C	Right Angle	24mm		2	24.00046mm	Non-RoHS Compliant	UL94 HB	Lead Free	Copper Alloy	Silver	125V	300mA						9.34974mm	Through Hole, Right Angle	-20°C~85°C		125V			30mOhm				400mW	Switch							PC Pin	Shorting			Epoxy Sealed Terminals	300mA AC	DP3T											15,000 Cycles	On-On-On	125V		300mA	3.51mm	Silver		Standard	15,000 Cycles	DP3T		9.02mm	Polyester		Shorting (MBB)	470gf			2.00mm
1825011-6	TE Connectivity ALCOSWITCH Switches	RFQ Min: 1 Mult: 1	download	28 Weeks	ACTIVE (Last Updated: 1 week ago)	Surface Mount		Tape & Reel (TR)	2008	ASF	Active		Gull Wing	2	EAR99					Compliant		10.16mm	RoHS Compliant	UL94 V-0		Copper Alloy				No			SMD/SMT		7.35mm	Surface Mount	-40°C~80°C			8536.50.90.50	TAPE AND REEL				20V							7.37 mm	4.45mm	Gull Wing				Tape Seal	0.4VA AC/DC		SLIDE SWITCH										15,000 Cycles	On-On				4.06mm	Gold		Screwdriver Slot	15,000 Cycles	DPDT		Flush	Polyamide (PA46), Nylon 4/6		Shorting (MBB)	950gf			2.79mm
MHS222K	TE Connectivity ALCOSWITCH Switches	RFQ Min: 1 Mult: 1						Bulk	2016	MHS	Obsolete	Not Applicable													Lead Free	Copper Alloy	Silver									Through Hole	-20°C~85°C		125V															PC Pin				Epoxy Sealed Terminals	300mA AC												15,000 Cycles	On-On					Silver		Baton	15,000 Cycles	DPDT		10.00mm	Aluminum		Shorting (MBB)	600gf			4.00mm
1-1825011-1	TE Connectivity ALCOSWITCH Switches	RFQ Min: 1 Mult: 1	download	28 Weeks	ACTIVE (Last Updated: 2 days ago)	Surface Mount		Tube	2008	ASF	Active	1 (Unlimited)	J-Lead, Solder	2		80°C	-40°C	Vertical				10.16mm	RoHS Compliant	UL94 V-0		Copper Alloy	Silver			No			SMD/SMT		7.366mm	Surface Mount	-40°C~80°C		115V								Switch							J Lead				Tape Seal	300mA AC	DPDT											15,000 Cycles	On-On	115V		300mA		Silver	Non-Illuminated	Screwdriver Slot	15,000 Cycles	DPDT		Flush	Polyamide (PA46), Nylon 4/6		Shorting (MBB)	950gf			2.79mm
MSS4200G	TE Connectivity ALCOSWITCH Switches	RFQ Min: 1 Mult: 1	download			Through Hole		Bulk	2004	MSS	Obsolete	Not Applicable	PC Pin	2		85°C	-20°C	Vertical		Compliant			RoHS Compliant	UL94 V-0	Lead Free	Copper Alloy	Gold									Through Hole	-20°C~85°C	20V	125V			20mOhm			20V	400mW								PC Pin				Epoxy Sealed Terminals	0.4VA AC/DC	4PDT											15,000 Cycles	On-On	20V			2.79mm	Gold		Standard	15,000 Cycles	4PDT		8.00mm	Polyoxymethylene (Acetal) (POM)		Shorting (MBB)	600gf			2.00mm
SLS260PC	TE Connectivity ALCOSWITCH Switches	RFQ Min: 1 Mult: 1	download			Through Hole		Bulk	2016	SLS	Obsolete	Not Applicable	PC Pin	6		60°C	-10°C	Vertical		Non-Compliant			Non-RoHS Compliant	UL94 HB	Contains Lead	Copper Alloy	Silver				6					Through Hole	-10°C~60°C	12V	125V															PC Pin				Epoxy Sealed Terminals	250mA AC 150mA DC	DP6T											6,000 Cycles				150mA	2.5mm	Silver		Standard	10,000 Cycles	DP6T		5.00mm	Polybutylene Terephthalate (PBT)		Non-Shorting (BBM)	250gf			3.20mm
MSS4200RG	TE Connectivity ALCOSWITCH Switches	RFQ Min: 1 Mult: 1	download	8 Weeks		Through Hole		Bulk	2004	MSS	Obsolete	Not Applicable	PC Pin	2		85°C	-20°C	Right Angle		Non-Compliant			Non-RoHS Compliant	UL94 V-0	Contains Lead	Copper Alloy	Gold									Through Hole, Right Angle	-20°C~85°C	20V	125V			20mOhm			20V	400mW								PC Pin				Epoxy Sealed Terminals	0.4VA AC/DC	4PDT											15,000 Cycles	On-On	20V			3mm	Gold		Standard	15,000 Cycles	4PDT		7.00mm	Polyoxymethylene (Acetal) (POM)		Shorting (MBB)	600gf			2.00mm
STS2300PC	TE Connectivity ALCOSWITCH Switches	RFQ Min: 1 Mult: 1	download	8 Weeks				Bulk	2001	STS	Obsolete	Not Applicable											Non-RoHS Compliant		Contains Lead	Copper Alloy	Silver									Through Hole	-10°C~60°C		125V															PC Pin				Epoxy Sealed Terminals	300mA AC													On-On-On					Silver		Standard	10,000 Cycles	DP3T		4.00mm	Polyoxymethylene (Acetal) (POM)		Shorting (MBB)	250gf			2.50mm
MSSA4350G	TE Connectivity ALCOSWITCH Switches	RFQ Min: 1 Mult: 1	download	42 Weeks	ACTIVE (Last Updated: 4 days ago)	Through Hole		Bulk	2005	MSSA	Active		PC Pins	3		85°C	-20°C			Non-Compliant		26.67mm	Non-RoHS Compliant	UL94 HB		Copper Alloy	Gold			No					9.40054mm	Through Hole	-20°C~85°C	20V	20V						20V		Switch							PC Pin				Epoxy Sealed Terminals	0.4VA AC/DC	4P3T											15,000 Cycles	On-On-On	20V			3.51mm	Gold		Standard	15,000 Cycles	4P3T		10.41mm	Polyester		Shorting (MBB)	470gf			2.00mm
2-1825010-1	TE Connectivity ALCOSWITCH Switches	RFQ Min: 1 Mult: 1	download	28 Weeks	ACTIVE (Last Updated: 5 days ago)	Surface Mount	Polychlorinated	Bulk	2008	ASE	Active		Gull Wing	2		80°C	-40°C	Right Angle		Compliant		17.78mm	RoHS Compliant	UL94 V-0		Copper Alloy	Gold			No	2		SMD/SMT		7.37mm	Surface Mount, Right Angle	-40°C~80°C	20V	20V						20V		Switch							Gull Wing	Shorting				0.4VA AC/DC	4PDT											15,000 Cycles	On-On	20V				Gold		Standard	15,000 Cycles	4PDT		5.82mm	Polyamide (PA46), Nylon 4/6		Shorting (MBB)	950gf			2.79mm
1825162-1	TE Connectivity ALCOSWITCH Switches	RFQ Min: 1 Mult: 1	download	7 Weeks				Bulk		STS	Obsolete	Not Applicable			EAR99								RoHS Compliant			Copper Alloy						LOW PROFILE		compliant		Through Hole, Right Angle	-10°C~60°C		125V	8536.50.90.50									NO	THROUGH HOLE-RIGHT ANGLE	15.5mm	5.21 mm	6.1mm	PC Pin				Epoxy Sealed Terminals	300mA AC		SLIDE SWITCH	EPOXY TERMINAL SEALED	0.25A		125V						10000 Cycle(s)	On-On-On					Silver		Standard	10,000 Cycles	SP3T		4.00mm	Polyoxymethylene (Acetal) (POM)		Shorting (MBB)	250gf			2.50mm
