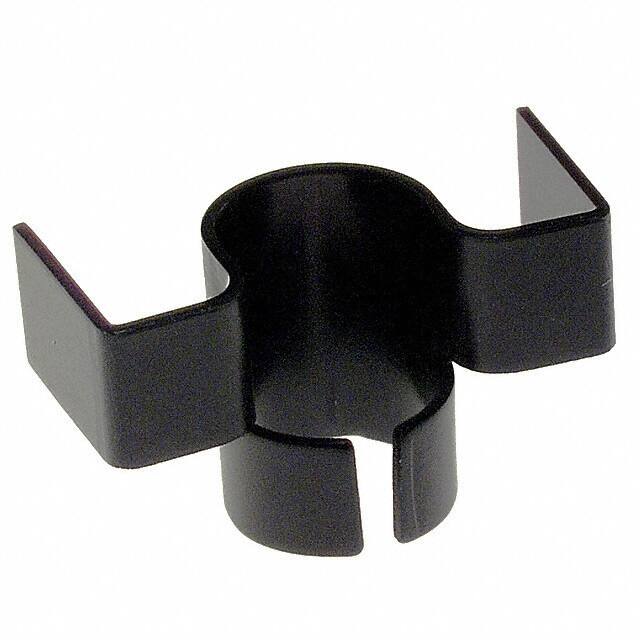

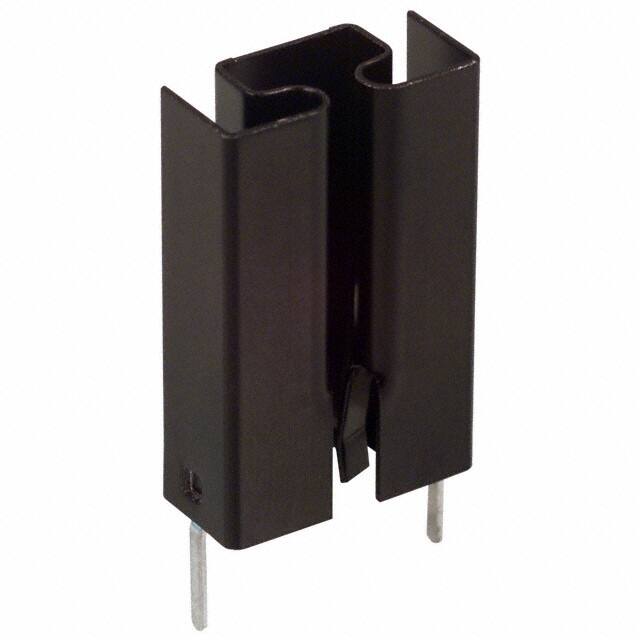

Heat Sinks

Name	Manufacturer	Quantity	Datasheet	Factory Lead Time	Mount	Material	Shape	Packaging	Published	Series	Part Status	Moisture Sensitivity Level (MSL)	Color	Depth	Diameter	Length	RoHS Status	Lead Free	Contact Plating	Radiation Hardening	Package / Case	REACH SVHC	Height	Width	Weight	Type	Body Material	Power Dissipation	Thermal Resistance @ Natural	Height Off Base (Height of Fin)	Attachment Method	Package Cooled	Thermal Resistance @ Forced Air Flow	Material Finish	Power Dissipation @ Temperature Rise
502403B00000	Aavid, Thermal Division of Boyd Corporation	RFQ Min: 1 Mult: 1	download	7 Weeks	Bolt	Aluminum	Rhombus	Bulk	2007		Active	Not Applicable	Black			1.630 41.40mm	RoHS Compliant	Lead Free					31.8mm	1.290 32.77mm		Board Level		12W		1.250 31.75mm	Bolt On			Black Anodized
501603B00000G	Aavid, Thermal Division of Boyd Corporation	RFQ Min: 1 Mult: 1	download	7 Weeks	Bolt	Aluminum	Rhombus	Bulk	2003		Active	Not Applicable	Black	35.56mm		1.880 47.75mm	RoHS Compliant	Lead Free		No	TO-3	No SVHC	32mm	1.400 35.56mm	113.398093g	Board Level			7.80°C/W	1.250 31.75mm	Bolt On	TO-3	3.00°C/W @ 200 LFM	Black Anodized	4.0W @ 30°C
7109DG	Aavid, Thermal Division of Boyd Corporation	RFQ Min: 1 Mult: 1	download	7 Weeks	Surface Mount	Copper	Rectangular, Fins		2006		Active	Not Applicable	Black	19.38mm		0.763 19.38mm	RoHS Compliant	Lead Free	Tin	No	TO-263	No SVHC	11mm	1.000 25.40mm		Top Mount			11.00°C/W	0.450 11.43mm	SMD Pad	TO-263 (D2Pak)	3.00°C/W @ 300 LFM	Tin	2.0W @ 30°C
533202B02500G	Aavid, Thermal Division of Boyd Corporation	RFQ Min: 1 Mult: 1	download		Bolt, PC Pin	Aluminum	Rectangular, Fins		2007		Active	Not Applicable				2.000 50.80mm	RoHS Compliant							1.375 34.93mm		Board Level, Vertical			9.00°C/W	0.500 12.70mm	Bolt On and PC Pin	TO-220	3.00°C/W @ 400 LFM	Black Anodized	3.0W @ 30°C
590102B03600G	Aavid, Thermal Division of Boyd Corporation	RFQ Min: 1 Mult: 1	download	7 Weeks	Bolt, PC Pin, Solder	Aluminum	Rectangular, Fins	Bulk	2007		Active	Not Applicable	Black	25.4mm		1.675 42.55mm	RoHS Compliant	Lead Free		No	TO-220	No SVHC	42.54mm	1.000 25.40mm	113.398093g	Board Level, Vertical			10.00°C/W	1.000 25.40mm	Bolt On and PC Pin	TO-220	4.00°C/W @ 300 LFM	Black Anodized	2.5W @ 30°C
505403B00000G	Aavid, Thermal Division of Boyd Corporation	RFQ Min: 1 Mult: 1	download	7 Weeks	Bolt	Aluminum	Square, Pin Fins		2007		Active	Not Applicable	Black	45.21mm		1.780 45.21mm	RoHS Compliant	Lead Free			TO-3	No SVHC	31.75mm	1.780 45.21mm	113.398093g	Board Level			6.00°C/W	1.250 31.75mm	Bolt On	TO-3	1.50°C/W @ 600 LFM	Black Anodized	7.0W @ 40°C
566902B04000G	Aavid, Thermal Division of Boyd Corporation	RFQ Min: 1 Mult: 1	download	7 Weeks	Clip, PC Pin	Aluminum	Rectangular, Fins	Box	2007		Active	Not Applicable	Black	12.7mm		0.850 21.59mm	RoHS Compliant	Lead Free			TO-220		21.59mm	1.000 25.40mm		Board Level, Vertical			18.80°C/W	0.500 12.70mm	Clip and PC Pin	TO-220, TO-262	9.00°C/W @ 200 LFM	Black Anodized	2.0W @ 40°C
6022BG	Aavid, Thermal Division of Boyd Corporation	RFQ Min: 1 Mult: 1	download	7 Weeks	Bolt, PC Pin	Aluminum	Rectangular, Fins		2006		Active	Not Applicable	Black	6.35mm		1.210 30.73mm	RoHS Compliant	Lead Free		No	TO-220		30.73mm	0.875 22.22mm		Board Level, Vertical			16.70°C/W	0.250 6.35mm	Bolt On and PC Pin	TO-220	6.00°C/W @ 400 LFM	Black Anodized	2.0W @ 40°C
575002D00000G	Aavid, Thermal Division of Boyd Corporation	RFQ Min: 1 Mult: 1	download	7 Weeks	Bolt, PC Pin, Screw		Rectangular, Fins		2007		Active	Not Applicable				1.180 29.97mm	RoHS Compliant				TO-220		29.97mm	1.000 25.40mm		Board Level, Vertical			13.60°C/W	0.500 12.70mm	Bolt On and PC Pin	TO-220	5.00°C/W @ 400 LFM	Tin	1.0W @ 20°C
6222BG	Aavid, Thermal Division of Boyd Corporation	RFQ Min: 1 Mult: 1	download	9 Weeks	Bolt	Aluminum	Square, Fins		2007		Active	Not Applicable	Black	26.92mm		1.060 26.92mm	RoHS Compliant	Lead Free		No		No SVHC	31.75mm	1.060 26.92mm		Board Level			9.40°C/W	1.250 31.75mm	Bolt On	Bridge Rectifiers	3.00°C/W @ 400 LFM	Black Anodized	3.0W @ 30°C
7138DG	Aavid, Thermal Division of Boyd Corporation	RFQ Min: 1 Mult: 1	download	9 Weeks	Clip, PC Pin	Copper	Rectangular, Fins		2007		Active	Not Applicable		15.49mm		1.025 26.04mm	RoHS Compliant	Lead Free				No SVHC	26.04mm	1.005 25.53mm		Board Level, Vertical			20.00°C/W	0.610 15.49mm	Clip and PC Pin	TO-220	5.00°C/W @ 500 LFM	Tin	1.5W @ 40°C
323005B00000G	Aavid, Thermal Division of Boyd Corporation	RFQ Min: 1 Mult: 1	download	9 Weeks	Press Fit	Aluminum	Cylindrical		2007		Active	Not Applicable	Black	6.35mm	0.318 8.07mm ID 0.750 19.05mm OD	19.05mm	RoHS Compliant	Lead Free		No	TO-5	No SVHC	6.35mm	19.05mm		Board Level			56.00°C/W	0.250 6.35mm	Press Fit	TO-5	35.00°C/W @ 200 LFM	Black Anodized	1.4W @ 70°C
375024B00032G	Aavid, Thermal Division of Boyd Corporation	RFQ Min: 1 Mult: 1	download	8 Weeks		Aluminum	Square, Pin Fins	Bulk	2002		Active	Not Applicable	Black	40mm		1.575 40.00mm	RoHS Compliant	Lead Free		No	BGA	No SVHC	18mm	1.575 40.01mm		Top Mount	Metal		12.00°C/W	0.709 18.00mm	Thermal Tape, Adhesive (Included)	BGA	4.30°C/W @ 200 LFM	Black Anodized	2.0W @ 30°C
M45165B021000G	Aavid, Thermal Division of Boyd Corporation	RFQ Min: 1 Mult: 1	download	7 Weeks		Aluminum	Rectangular, Fins			Max Clip System™	Active	Not Applicable				1.650 41.91mm								1.181 30.00mm		Board Level, Vertical				1.988 50.50mm	Clip and PC Pin	TO-126, TO-220, TO-247		Black Anodized
2283B	Aavid, Thermal Division of Boyd Corporation	RFQ Min: 1 Mult: 1	download		Adhesive	Aluminum	Square, Fins				Active	Not Applicable		6.73mm		0.655 16.64mm	Non-RoHS Compliant			No	Radial			0.655 16.64mm		Board Level				0.265 6.73mm	Thermal Tape, Adhesive (Not Included)	BGA	17.50°C/W @ 300 LFM	Black Anodized	1.0W @ 40°C

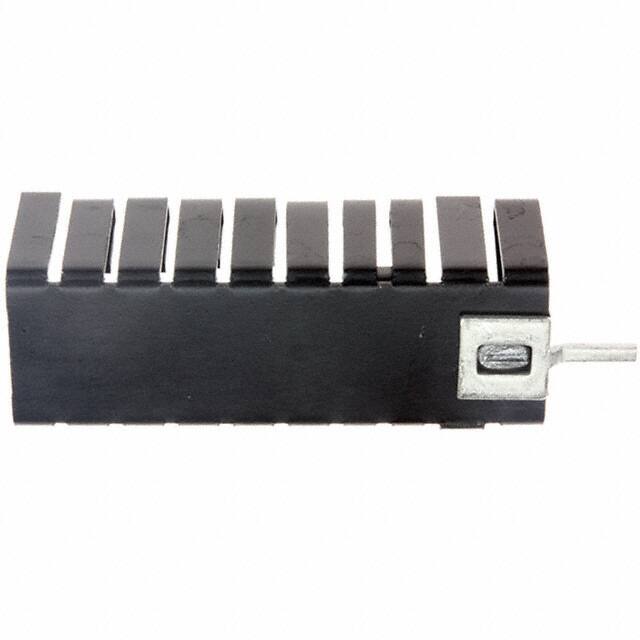

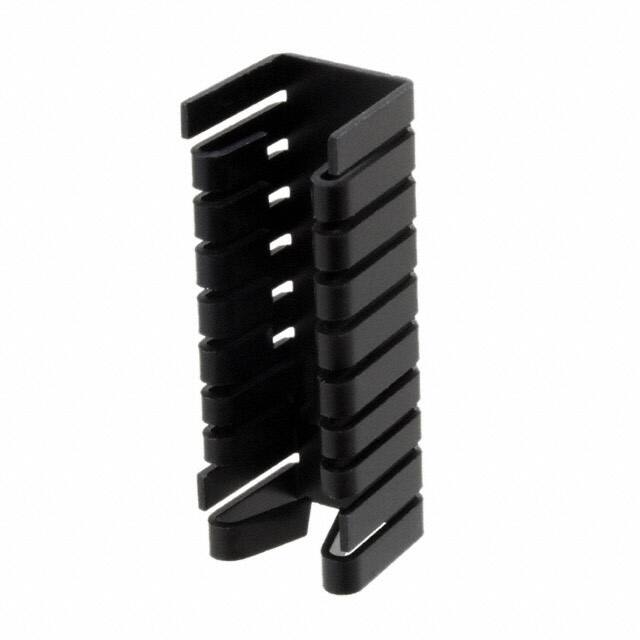

573902B04000G	Aavid, Thermal Division of Boyd Corporation	RFQ Min: 1 Mult: 1	download	7 Weeks	Clip, PC Pin	Aluminum	Rectangular, Fins		2007		Active	Not Applicable	Black	12.7mm		1.500 38.10mm	RoHS Compliant	Lead Free		No	TO-220	No SVHC	38.1mm	0.500 12.70mm		Board Level, Vertical			18.80°C/W	0.500 12.70mm	Clip and PC Pin	TO-220	7.00°C/W @ 200 LFM	Black Anodized	3.0W @ 60°C
530613B00000G	Aavid, Thermal Division of Boyd Corporation	RFQ Min: 1 Mult: 1	download	7 Weeks	Bolt, Screw	Aluminum	Rectangular, Fins	Bulk	2003		Active	Not Applicable	Black	25.4mm		1.180 29.97mm	RoHS Compliant	Lead Free	Tin	No	TO-220	No SVHC	29.97mm	1.000 25.40mm	113.398093g	Board Level			16.70°C/W	0.500 12.70mm	Bolt On	TO-220	6.00°C/W @ 600 LFM	Black Anodized	4.0W @ 80°C
6225B-MTG	Aavid, Thermal Division of Boyd Corporation	RFQ Min: 1 Mult: 1	download	7 Weeks	Bolt, PC Pin	Aluminum	Rectangular, Fins		2006		Active	Not Applicable	Black	8mm		1.070 27.18mm	RoHS Compliant	Lead Free		No	TO-220	Unknown	27.18mm	1.024 26.00mm		Board Level, Vertical			15.00°C/W	0.315 8.00mm	Bolt On and PC Pin	TO-220	3.00°C/W @ 700 LFM	Black Anodized	2.0W @ 40°C
529701B02100G	Aavid, Thermal Division of Boyd Corporation	RFQ Min: 1 Mult: 1	download	7 Weeks	Bolt, PC Pin, Solder	Aluminum	Rectangular, Fins		2007		Active	Not Applicable				1.000 25.40mm	RoHS Compliant	Lead Free			Radial			1.650 41.91mm		Board Level, Vertical			5.50°C/W	1.000 25.40mm	Bolt On and PC Pin	TO-218	4.00°C/W @ 200 LFM	Black Anodized	12.0W @ 70°C

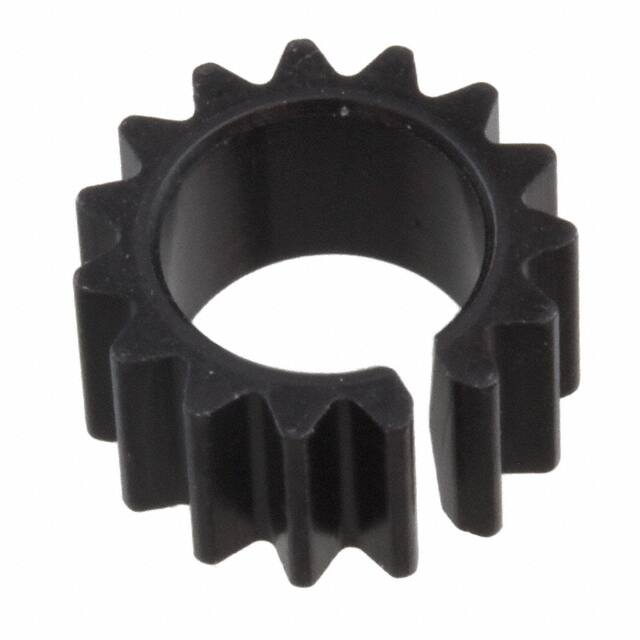

325705B00000G	Aavid, Thermal Division of Boyd Corporation	RFQ Min: 1 Mult: 1	download	9 Weeks	Press Fit	Aluminum	Cylindrical		2007		Active	Not Applicable	Black		0.318 8.07mm ID 0.500 12.70mm OD	6.35mm	RoHS Compliant	Lead Free			TO-5	No SVHC	6.35mm			Board Level			60.00°C/W	0.250 6.35mm	Press Fit	TO-5	35.00°C/W @ 200 LFM	Black Anodized	1.0W @ 60°C
530400B00100G	Aavid, Thermal Division of Boyd Corporation	RFQ Min: 1 Mult: 1	download	7 Weeks	Bolt	Aluminum	Square, Angled Fins		2007		Active	Not Applicable				1.750 44.45mm	RoHS Compliant	Lead Free			TO-218			0.490 12.44mm		Board Level, Vertical			6.30°C/W	1.750 44.45mm	Bolt On and Board Mounts	TO-220, TO-218	2.00°C/W @ 400 LFM	Black Anodized	4.0W @ 30°C
576602B00000G	Aavid, Thermal Division of Boyd Corporation	RFQ Min: 1 Mult: 1	download	7 Weeks	Bolt, PC Pin	Aluminum	Rectangular, Fins	Bulk	2003		Active	Not Applicable	Black	12.7mm		0.950 24.13mm	RoHS Compliant	Lead Free			TO-220		24.13mm	1.000 25.40mm		Board Level, Vertical			16.60°C/W	0.500 12.70mm	Bolt On and PC Pin	TO-220	9.00°C/W @ 200 LFM	Black Anodized	1.0W @ 20°C
2286B	Aavid, Thermal Division of Boyd Corporation	RFQ Min: 1 Mult: 1	download	9 Weeks	Adhesive	Aluminum	Square	Box			Active	Not Applicable				0.790 20.07mm	Non-RoHS Compliant	Lead Free			Radial			0.790 20.07mm		Board Level				0.155 3.94mm	Thermal Tape, Adhesive (Not Included)	BGA	20.00°C/W @ 200 LFM	Black Anodized	1.0W @ 40°C
579604B00000G	Aavid, Thermal Division of Boyd Corporation	RFQ Min: 1 Mult: 1	download	7 Weeks	Clip	Aluminum	Rectangular, Fins		2007		Active	Not Applicable	Black			0.900 22.86mm	RoHS Compliant				TO-202		22.86mm	0.745 18.92mm		Board Level			24.00°C/W	0.420 10.67mm	Clip	TO-202	6.00°C/W @ 700 LFM	Black Anodized	1.5W @ 40°C
529902B00000	Aavid, Thermal Division of Boyd Corporation	RFQ Min: 1 Mult: 1	download		Bolt	Aluminum	Rectangular, Fins		2005		Active	Not Applicable				2.000 50.80mm	Non-RoHS Compliant						50.8mm	1.650 41.91mm		Board Level			4.50°C/W	1.000 25.40mm	Bolt On	TO-220	1.50°C/W @ 500 LFM	Black Anodized	6.0W @ 30°C
533402B02552G	Aavid, Thermal Division of Boyd Corporation	RFQ Min: 1 Mult: 1	download	7 Weeks	Clip, PC Pin	Aluminum	Rectangular, Fins	Box	2007		Active	Not Applicable	Black	25.4mm		1.650 41.91mm	RoHS Compliant	Lead Free			TO-220		38.1mm	1.000 25.40mm		Board Level, Vertical			5.00°C/W	1.500 38.10mm	Clip and PC Pin	TO-220	2.00°C/W @ 500 LFM	Black Anodized	8.0W @ 40°C
529802B02500G	Aavid, Thermal Division of Boyd Corporation	RFQ Min: 1 Mult: 1	download	7 Weeks	Bolt, PC Pin, Solder	Aluminum	Rectangular, Fins	Bulk	2007		Active	Not Applicable	Black	25.4mm		1.000 25.40mm	RoHS Compliant	Lead Free		No	Radial	No SVHC	38.1mm	1.650 41.91mm		Board Level, Vertical			3.70°C/W	1.500 38.10mm	Bolt On and PC Pin	TO-220	3.00°C/W @ 200 LFM	Black Anodized	10.0W @ 50°C
592502B00000G	Aavid, Thermal Division of Boyd Corporation	RFQ Min: 1 Mult: 1	download		Bolt	Aluminum	Rectangular, Fins		2007		Active	Not Applicable				1.250 31.75mm	RoHS Compliant				TO-220			0.875 22.22mm		Board Level			22.00°C/W	0.250 6.35mm	Bolt On	TO-220	10.00°C/W @ 200 LFM	Black Anodized	1.5W @ 40°C

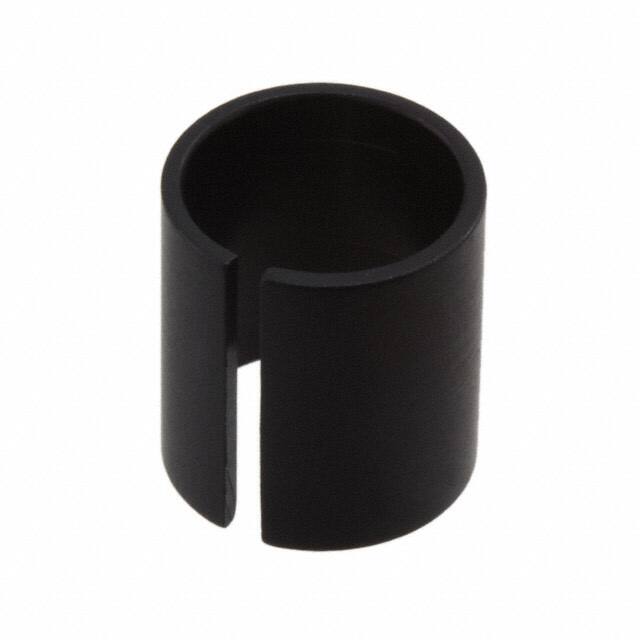

311505B00000G	Aavid, Thermal Division of Boyd Corporation	RFQ Min: 1 Mult: 1	download	9 Weeks	Press Fit	Aluminum	Cylindrical		2007		Active	Not Applicable	Black		0.317 8.05mm ID 0.375 9.52mm OD		RoHS Compliant				TO-5	No SVHC	10.16mm			Board Level			90.00°C/W	0.400 10.16mm	Press Fit	TO-5	45.00°C/W @ 200 LFM	Black Anodized	1.0W @ 70°C
568115B00000	Aavid, Thermal Division of Boyd Corporation	RFQ Min: 1 Mult: 1	download	7 Weeks	Bolt	Aluminum	Rectangular, Pin Fins		2007		Active	Not Applicable	Black			1.810 45.97mm	Non-RoHS Compliant	Lead Free			TO-3		19.05mm	1.810 45.97mm		Top Mount			6.70°C/W	0.750 19.05mm	Bolt On	TO-3	1.50°C/W @ 200 LFM	Black Anodized	5.0W @ 40°C
