B3B-XH-A(LF)(SN)
B3B-XH-A(LF)(SN)
feilidi-B3B-XH-A(LF)(SN)
Bulk

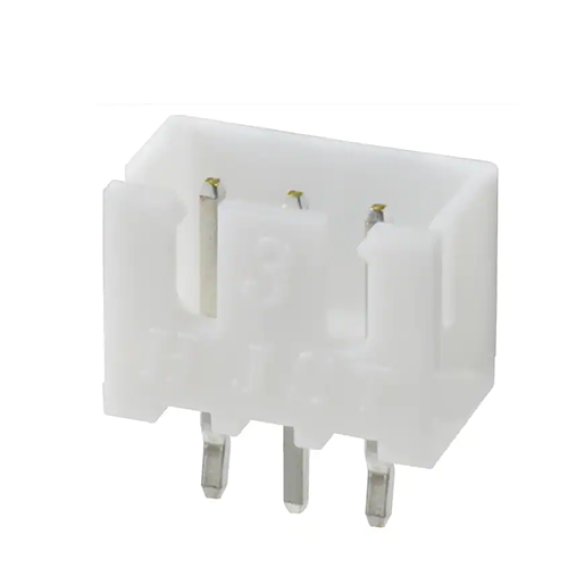

Connector Header Through Hole 3 position 0.098" (2.50mm)
In Stock : 1999
Share
Please send RFQ, we will respond immediately.
Product Details
Purchasing and Inquiry
The XH connector was developed based on the high reliability and versatility of our NH
series connectors. The connector is very small with a mounting height of 9.8 mm.
● Original folded beam contact
● Box-shaped shrouded header
● Header with a boss
● Interchangeability
● Conforming to the HA terminal
Specifications
• Current rating: 3 A AC/DC (AWG #22)
• Voltage rating: 250 V AC/DC
• Temperature range: -25℃ to +85℃
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/ 10 mΩ max.
After environmental tests/ 20 mΩ max.
• Insulation resistance: 1,000 MΩ min.
• Withstanding voltage: 1,000 VAC/minute
• Applicable wire: AWG #30 to #22
• Applicable PC board thickness: 1.6 mm
* In using the products, refer to "Handling Precautions for Terminals
and Connectors" described on our website (Technical documents
of Product information page).
* RoHS2 compliance
* Dimensional unit: mm
* Contact JST for details.
Standards
Recognized E60389
J5001429
