Product Description:

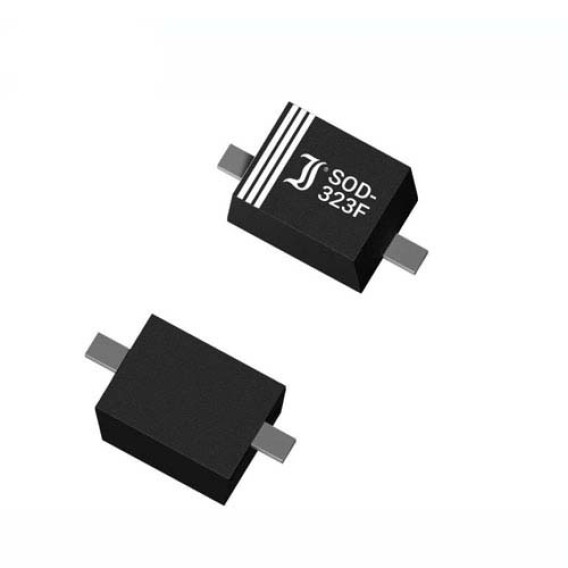

The BAT42WS is a small-signal Schottky diode known for its fast switching speed and low forward voltage drop. Designed for precision signal handling and rectification applications, this diode offers excellent performance and reliability in a compact package.
Features:
Fast Switching Speed: The BAT42WS diode features a rapid switching speed, making it suitable for applications that require quick transitions between conducting and non-conducting states.
Low Forward Voltage Drop: With a low forward voltage drop, the diode minimizes energy loss and heat generation during conduction, contributing to improved overall efficiency.
Schottky Barrier Design: The Schottky barrier design of the diode reduces the recovery time and eliminates the minority carrier storage effects, resulting in faster switching performance.
Small SOD-323 Package: Housed in a compact SOD-323 package, the diode is well-suited for space-constrained applications and can be easily mounted on circuit boards.
Low Leakage Current: The BAT42WS diode exhibits low reverse leakage current, ensuring minimal current flow in the reverse direction, which is crucial for maintaining signal integrity.
High Temperature Stability: Designed to perform reliably across a wide temperature range, the diode is suitable for both standard and high-temperature environments.
Applications:
Signal Demodulation: Used in communication systems for demodulating signals, the BAT42WS diode helps extract the original modulated signal from the carrier wave.
High-Frequency Rectification: Ideal for high-frequency rectification applications, such as in RF circuits, where low forward voltage drop and fast switching are essential.
Mixing and Detection: Found in mixer circuits for frequency conversion and detection, where the diode's fast switching speed aids in signal processing.
Clamping and Protection: Utilized as clamping diodes in protection circuits to prevent voltage spikes from damaging sensitive components.
Precision Signal Handling: Integrated into precision signal handling circuits, the diode ensures accurate and efficient signal processing.
Voltage Multipliers: Incorporated in voltage multiplier circuits to efficiently generate higher voltage levels from lower input voltages.
Sensor Circuits: Used in sensor circuits for efficient signal conditioning and amplification.
Low-Power Rectification: Employed for low-power rectification tasks in various electronic devices and applications.
In summary, the BAT42WS Schottky diode is a versatile component known for its fast switching speed, low forward voltage drop, and reliability. Its compact size and efficient performance make it suitable for a wide range of applications, including signal processing, rectification, and protection circuits. By providing fast and accurate switching, the BAT42WS diode contributes to the overall efficiency and performance of electronic systems in various industries.
