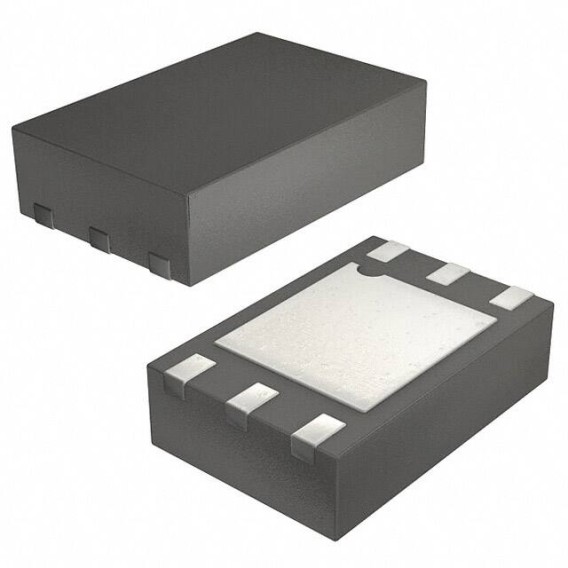

  • FDMB2307NZ

FDMB2307NZ

advertisement

Manufacturer No:

FDMB2307NZ

Manufacturer:

ON Semiconductor

HK JDW NO:

598-FDMB2307NZ

Package:

6-WDFN Exposed Pad

Datasheet:

FDMB2307NZ

Description:

FDMB2307NZ datasheet pdf and Transistors - FETs, MOSFETs - Arrays product details from ON Semiconductor stock available at HK JDW

Quantity:

In Stock : 999

Share

Please send RFQ, we will respond immediately.

* Contact Name

* Business Email

* Company Name

* Country

* Quantity

Product Details

Purchasing and Inquiry

FDMB2307NZ   Description



  The device is a single package solution designed specifically for lithium-ion battery pack protection circuits and other ultra-portable applications. It features two common-drain N-channel MOSFET, which allows bidirectional current flow in Fairchild's advanced power channel process and state-of-the-art MicroFET lead frame, FDMB2307NZ minimizes the number of these two printed circuit boards.Spaces and s1S2 (open)



FDMB2307NZ     Application


Li-lon Battery Pack



FDMB2307NZ     Features


Max rs1s2(on)=16.5mΩat VGs=4.5VD=8A Max rs1S2(on)=18 mΩat VGs=4.2 V lo=7.4A Maxrs1S2(on)=21mΩatVGs=3.1VIb=7A Maxs1S2(on)=24mΩat VGs=2.5Vo=6.7A

Low Profile-0.8 mm maximum-in the new package MicroFET 2x3 mm

HBM ESD protection level>2kV(Note3)

RoHS Compliant







1. Purchase

You can send an inquiry by email, or add the item to the RFQ list and submit it to us.
Tell us the model and quantity you need, our sales staff will reply the price in time.
EmailEmail for receiving inquiries: jindawei@hkjdwchip.com

2. Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

3. RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

4. Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:
FedEx International, 5-7 business days.
The following are some common countries' logistic time.

Purchasing and Inquiry

Payment Method

The fee is charged according to the rule of PayPal.
East West Bank charge US$30.00 banking fee.
The fee is charged according to the rule of PayPal.
Western Union charge US$0.00 banking fee.

Shipping

DHL(www.dhl.com)
From $40.00 basic shipping fee depend on zone and country.
UPS(www.ups.com)
From $40.00 basic shipping fee depend on zone and country.
FedEx(www.fedex.com)
From $40.00 basic shipping fee depend on zone and country.
Registered Mail(www.singpost.com)
From $10.00 basic shipping fee depend on different zone and country.

Package

Product
Step1Product
Casing drivepipe
Step2Casing drivepipe
Anti-static bag
Step3Anti-static bag
Packaging boxes
Step4Packaging boxes
Bar-code shipping tag
Step5Bar-code shipping tag

FDMB2307NZ

technical specifications, attributes, parameters and parts with similar specifications to FDMB2307NZ.

  • Type
    Parameter
    Select All
  • Factory Lead Time

    16 Weeks

  • Lifecycle Status

    ACTIVE (Last Updated: 4 days ago)

  • Contact Plating

    Gold

  • Mount

    Surface Mount

  • Mounting Type

    Surface Mount

  • Package / Case

    6-WDFN Exposed Pad

  • Number of Pins

    6

  • Weight

    12.0024mg

  • Transistor Element Material

    SILICON

  • Operating Temperature

    -55°C~150°C TJ

  • Packaging

    Tape & Reel (TR)

  • Published

    2017

  • Series

    PowerTrench®

  • JESD-609 Code

    e4

  • Pbfree Code

    yes

  • Part Status

    Active

  • Moisture Sensitivity Level (MSL)

    1 (Unlimited)

  • Number of Terminations

    6

  • ECCN Code

    EAR99

  • Subcategory

    FET General Purpose Power

  • Max Power Dissipation

    800mW

  • Base Part Number

    FDMB2307

  • Number of Elements

    2

  • Operating Mode

    ENHANCEMENT MODE

  • Power Dissipation

    2.2W

  • Turn On Delay Time

    12 ns

  • FET Type

    2 N-Channel (Dual) Common Drain

  • Transistor Application

    SWITCHING

  • Gate Charge (Qg) (Max) @ Vgs

    28nC @ 5V

  • Rise Time

    34ns

  • Drain to Source Voltage (Vdss)

    20V

  • Fall Time (Typ)

    17 ns

  • Turn-Off Delay Time

    32 ns

  • Continuous Drain Current (ID)

    8A

  • Threshold Voltage

    1V

  • Gate to Source Voltage (Vgs)

    12V

  • Drain Current-Max (Abs) (ID)

    9.7A

  • Input Capacitance

    1.76nF

  • FET Technology

    METAL-OXIDE SEMICONDUCTOR

  • FET Feature

    Logic Level Gate

  • Height

    750μm

  • Length

    2mm

  • Width

    3mm

  • Radiation Hardening

    No

  • REACH SVHC

    No SVHC

  • RoHS Status

    ROHS3 Compliant

  • Lead Free

    Lead Free
