ISO6761FDWR

Features for the ISO6761

50 Mbps data rate

Robust isolation barrier:

High lifetime at 1500 VRMS working voltage

Up to 5000 VRMS isolation rating

Up to 10 kV surge capability

±150 kV/µs typical CMTI

Wide supply range: 1.71 V to 1.89 V and 2.25 V to 5.5 V

1.71 V to 5.5 V level translation

Default output high (ISO676x) and low (ISO676xF) options

Wide temperature range: –40°C to 125°C

1.6 mA per channel typical at 1 Mbps

Low propagation delay: 11 ns typical

Robust electromagnetic compatibility (EMC)

System-level ESD, EFT, and surge immunity

Low emissions

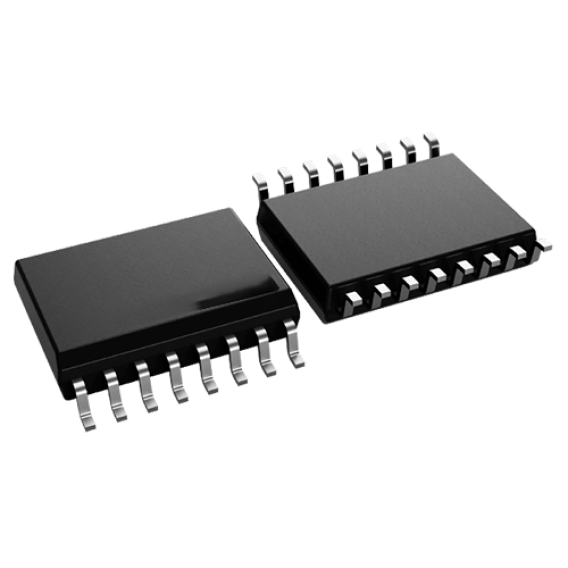

Wide-SOIC (DW-16) Package

Safety-Related Certifications (pending):

DIN VDE V 0884-11:2017-01

UL 1577 component recognition program

IEC 62368-1, IEC 61010-1, IEC 60601-1 and GB 4943.1-2011 certifications

Description for the ISO6761

The ISO676x devices are high-performance, six-channel digital isolators ideal for cost-sensitive applications requiring up to 5000 VRMS isolation ratings per UL 1577. These devices are also certified by VDE, TUV, CSA, and CQC.

The ISO676x devices provide high electromagnetic immunity and low emissions at low power consumption, while isolating CMOS or LVCMOS digital I/Os. Each isolation channel has a logic input and output buffer separated by TI’s double capacitive silicon dioxide (SiO2) insulation barrier. The ISO676x family of devices is available in all possible pin configurations such that all six channels are in the same direction, or one, two, or three channels are in reverse direction while the remaining channels are in forward direction. In the event of input power or signal loss, the default output is high for devices without suffix F and low for devices with suffix F. See Device Functional Modes section for further details.

Used in conjunction with isolated power supplies, these devices help prevent noise currents on data buses, such as UART, SPI, RS-485, RS-232, and CAN from damaging sensitive circuitry. Through innovative chip design and layout techniques, the electromagnetic compatibility of the ISO676x devices has been significantly enhanced to ease system-level ESD, EFT, surge, and emissions compliance. The ISO676x family of devices is available in a 16-pin SOIC wide-body (DW) package and is a pin-to-pin upgrade to the older generations.
