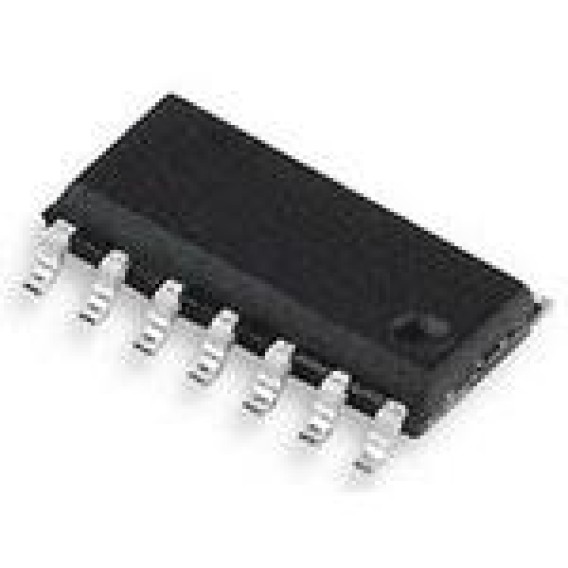

LM339D
LM339D
598-LM339D
SOIC
1.3 μs μs Linear Comparators 106.02dB dB 2007 2mA μA 5mV mV Surface Mount
In Stock : 999
Share
Please send RFQ, we will respond immediately.
Product Details
Purchasing and Inquiry
LM339D Description
The LM339D devices consist of four independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also is possible, as long as the difference between the two supplies is 2 V to 36 V, and VCC is at least 1.5 V more positive than the input common-mode voltage. Current drain is independent of the supply voltage. The outputs can be connected to other open-collector outputs to achieve wired-AND relationships.
These comparators are designed for use in level detection, low?level sensing and memory applications in consumer, automotive, and industrial electronic applications.
LM339D Features
Single or Split Supply Operation
Low Input Bias Current: 25 nA (Typ)
Low Input Offset Current: ±5.0 nA (Typ)
Low Input Offset Voltage
Input Common Mode Voltage Range to GND
Low Output Saturation Voltage: 130 mV (Typ) @ 4.0 mA
TTL and CMOS Compatible
ESD Clamps on the Inputs Increase Reliability without Affecting Device Operation
NCV Prefix for Automotive and Other Applications Requiring Site and Control Changes
Pb?Free Packages are Available
LM339D Applications
Industrial
Infotainment and Clusters
Body Control Modules
Power Supervision
Oscillators
Peak Detectors
Logic Voltage Translation
