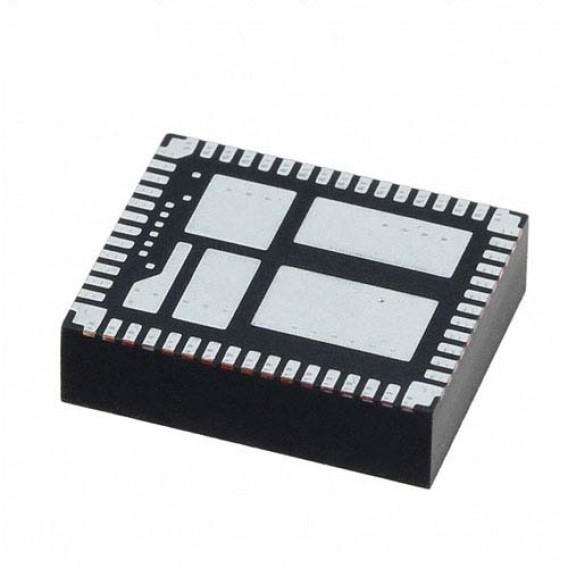

MPM3684GRU

advertisement

Manufacturer No:

MPM3684GRU

HK JDW NO:

541-MPM3684GRU

Package:

65-PowerBQFN Module

Datasheet:

MPM3684GRU

Description:

DC DC CONVERTER 0.65-5V

Quantity:

In Stock : 7998

Share

Please send RFQ, we will respond immediately.

* Contact Name

* Business Email

* Company Name

* Country

* Quantity

Product Details

Purchasing and Inquiry


Product Description: MPM3684GRU


The MPM3684GRU is a high-efficiency, synchronous step-down DC-DC converter designed to provide a regulated output voltage from a higher input voltage source. Manufactured by Monolithic Power Systems (MPS), this compact and versatile integrated circuit (IC) offers excellent performance in terms of efficiency, voltage regulation, and thermal management.


Description:

The MPM3684GRU is a buck converter IC designed to efficiently step down a higher input voltage to a regulated lower output voltage. It employs a synchronous rectification architecture for enhanced efficiency and integrates various features to optimize its performance.


Features:


High Efficiency: The MPM3684GRU employs a synchronous rectification topology, minimizing power loss during switching transitions and enhancing overall efficiency. This feature is crucial for applications where energy efficiency is a priority.


Wide Input Voltage Range: The converter can accept a wide range of input voltages, making it suitable for various power sources, including batteries, power adapters, and other voltage supplies.


Regulated Output Voltage: The IC maintains a stable and regulated output voltage even as the input voltage varies. This ensures consistent power supply to downstream components.


Adjustable Output Voltage: The output voltage can often be adjusted using external components, allowing flexibility in meeting specific application requirements.


Current Limit Protection: The MPM3684GRU incorporates current limit protection to prevent excessive current draw and potential damage to the converter and connected devices.


Thermal Shutdown: To prevent overheating and ensure long-term reliability, the IC includes thermal shutdown protection that temporarily disables the device if the temperature exceeds safe limits.


Soft-Start: The soft-start feature prevents excessive inrush current during startup, reducing stress on components and improving system reliability.


Compact Package: The IC is typically available in a small and space-saving package, making it suitable for designs with limited board space.


Applications:

The MPM3684GRU is widely used in various applications that require efficient voltage conversion and regulation. Some common application areas include:


Power Supplies: The IC is used to generate regulated output voltages for a wide range of devices, including industrial equipment, consumer electronics, and communication systems.


Battery-Powered Devices: It is employed in battery-powered devices to efficiently regulate voltages and extend battery life.


Portable Devices: The compact size and efficiency of the MPM3684GRU make it suitable for portable electronics such as smartphones, tablets, and wearable devices.


Networking Equipment: The converter is used in networking equipment like routers and switches to provide power to components and maintain stable voltage levels.


Industrial Applications: The IC finds use in industrial automation systems, control systems, and instrumentation where reliable power regulation is essential.


Automotive Electronics: It is utilized in automotive electronics for voltage conversion and regulation in various components, such as infotainment systems and advanced driver-assistance systems (ADAS).


Lighting Systems: The IC can be employed in LED lighting systems for voltage conversion and efficient power management.


Medical Devices: It is used in medical devices that require stable and efficient power conversion for optimal performance.


In summary, the MPM3684GRU is a highly efficient synchronous step-down DC-DC converter manufactured by Monolithic Power Systems. With features such as high efficiency, wide input voltage range, regulated output voltage, and built-in protection mechanisms, it is a versatile solution for applications that require voltage conversion and regulation. Its compact size and reliability make it suitable for a wide range of industries, including power supplies, portable devices, networking, industrial automation, automotive electronics, lighting, and medical devices.


1. Purchase

You can send an inquiry by email, or add the item to the RFQ list and submit it to us.
Tell us the model and quantity you need, our sales staff will reply the price in time.
EmailEmail for receiving inquiries: jindawei@hkjdwchip.com

2. Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

3. RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

4. Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:
FedEx International, 5-7 business days.
The following are some common countries' logistic time.

Purchasing and Inquiry

Payment Method

The fee is charged according to the rule of PayPal.
East West Bank charge US$30.00 banking fee.
The fee is charged according to the rule of PayPal.
Western Union charge US$0.00 banking fee.

Shipping

DHL(www.dhl.com)
From $40.00 basic shipping fee depend on zone and country.
UPS(www.ups.com)
From $40.00 basic shipping fee depend on zone and country.
FedEx(www.fedex.com)
From $40.00 basic shipping fee depend on zone and country.
Registered Mail(www.singpost.com)
From $10.00 basic shipping fee depend on different zone and country.

Package

Product
Step1Product
Casing drivepipe
Step2Casing drivepipe
Anti-static bag
Step3Anti-static bag
Packaging boxes
Step4Packaging boxes
Bar-code shipping tag
Step5Bar-code shipping tag

MPM3684GRU

technical specifications, attributes, parameters and parts with similar specifications to MPM3684GRU.

  • Type
    Parameter
    Select All
  • Factory Lead Time

    12 Weeks

  • Packaging

    Tray

  • Published

    2016

  • Part Status

    Active

  • Moisture Sensitivity Level (MSL)

    3 (168 Hours)

  • Number of Terminations

    65

  • ECCN Code

    EAR99

  • RoHS Status

    ROHS3 Compliant

  • Additional Feature

    OUTPUT VOLTAGE IS ADJUSTABLE FROM 0.65V TO 5V

  • Package / Case

    65-PowerBQFN Module

  • Mounting Type

    Surface Mount

  • Operating Temperature

    -40°C~85°C

  • Size / Dimension

    0.59Lx0.47W x 0.16 H 15.0mmx12.0mmx4.0mm

  • Number of Functions

    1

  • Type

    Non-Isolated PoL Module

  • Voltage - Input (Max)

    18V

  • Terminal Position

    QUAD

  • Terminal Form

    NO LEAD

  • Peak Reflow Temperature (Cel)

    260

  • Time@Peak Reflow Temperature-Max (s)

    40

  • Surface Mount

    YES

  • Terminal Pitch

    0.8mm

  • JESD-30 Code

    R-XQCC-N65

  • Number of Outputs

    1

  • Feature

    OCP, OTP, UVLO

  • Voltage - Output 1

    0.65V~5V

  • Input Voltage-Nom

    12V

  • Applications

    ITE (Commercial)

  • Control Technique

    PULSE WIDTH MODULATION

  • Switcher Configuration

    BUCK

  • Current - Output (Max)

    15A

  • Voltage - Input (Min)

    2.5V
