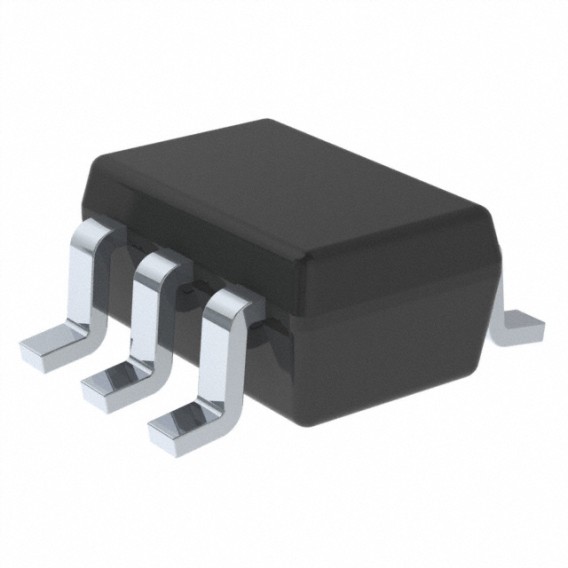

TPS22919QDCKRQ1

Features

Qualified for automotive applications

AEC-Q100 qualified: – Device temperature grade 1: –40°C to 125°C ambient operating temperature range

Input operating voltage range (VIN): 1.6 V to 5.5 V

Maximum continuous current (IMAX): 1.5 A

On-Resistance (RON): – 5-V VIN: 89 mΩ (typical) – 3.6-V VIN: 90 mΩ (typical) – 1.8-V VIN: 105 mΩ (typical)

Output short protection (ISC): 3 A (typical)

Low power consumption: – ON state (IQ): 8 µA (typical) – OFF state (ISD): 2 nA (typical)

Smart ON pin pull down (RPD): – ON ≥ VIH (ION): 100 nA (maximum) – ON ≤ VIL (RPD): 530 kΩ (typical)

Slow Turn ON timing to limit inrush current (tON): – 5.0 V Turn ON time (tON): 1.95 ms at 3.2 mV/μs – 3.6 V Turn ON time (tON): 1.75 ms at 2.7 mV/μs – 1.8 V Turn ON time (tON): 1.5 ms at 1.8 mV/μs

Adjustable output discharge and fall time: – Internal QOD resistance = 24 Ω (typical)

Applications

 Infotainment and cluster head unit

 Automotive cluster display

 ADAS Surround view system ECU

 Body control module and gateway

Description

The TPS22919-Q1 device is a small, single channel load switch with controlled slew rate. The device contains an N-channel MOSFET that can operate over an input voltage range of 1.6 V to 5.5 V and can support a maximum continuous current of 1.5 A. The switch ON state is controlled by a digital input that is capable of interfacing directly with low-voltage control signals. When power is first applied, a Smart Pull Down is used to keep the ON pin from floating until system sequencing is complete. Once the pin is deliberately driven High (>VIH), the Smart Pull Down will be disconnected to prevent unnecessary power loss. The TPS22919-Q1 load switch is also self-protected, meaning that it protects against short circuit events on the output of the device. It also has thermal shutdown protection to prevent any damage from overheating.
