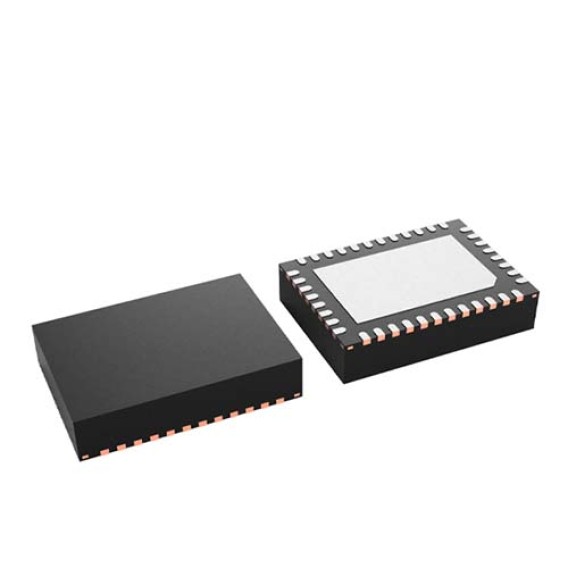

TPS546D24RVFT
TPS546D24RVFT
815-TPS546D24RVFT
Cut Tape
QUAD Specialized Voltage Regulator TPS546D24 40 Terminations
In Stock : 9275
Share
Please send RFQ, we will respond immediately.
Product Details
Purchasing and Inquiry
Description:The TPS546D24RVFT is a highly efficient, synchronous step-down DC-DC converter designed to provide a regulated output voltage from an input voltage source. This device is part of the TPS54x family and is specifically tailored for applications requiring high efficiency and a compact solution footprint.
Key Features:
- High Efficiency: The TPS546D24RVFT integrates high-performance MOSFET switches to achieve excellent power conversion efficiency, making it suitable for power-sensitive applications.
- Wide Input Voltage Range: With a broad input voltage range, this converter can accommodate a variety of input sources, enhancing its versatility for different power supply designs.
- Adjustable Output Voltage: The device allows for easy customization of the output voltage to meet specific application requirements, providing flexibility in system design.
- Synchronous Rectification: The synchronous rectification feature minimizes power losses and enhances overall efficiency by reducing diode conduction losses.
- Protection Features: The TPS546D24RVFT includes comprehensive protection features such as overcurrent protection, thermal shutdown, and undervoltage lockout, ensuring robust and reliable operation in diverse operating conditions.
- Compact Package: Packaged in a space-saving and thermally-enhanced VQFN package, the TPS546D24RVFT facilitates easy integration into compact electronic systems.
Applications:
- Point-of-load regulation
- Networking equipment
- Industrial automation
- Telecommunications infrastructure
- Power modules and supplies
Technical Specifications:
- Input Voltage Range: [Specify voltage range]
- Output Voltage Range: [Specify voltage range]
- Output Current: [Specify current rating]
- Efficiency: [Specify efficiency percentage]
- Operating Temperature Range: [Specify temperature range]
- Package Type: VQFN [Specify package dimensions]
Ordering Information:To order the TPS546D24RVFT or to obtain additional information, please refer to the product datasheet and contact our sales representatives.
Disclaimer:The information provided here is subject to change without notice. Users are advised to consult the latest datasheet for accurate and up-to-date product specifications before making any purchase decisions.
[Company Name] is committed to delivering high-quality, innovative solutions to meet the evolving needs of our customers. For inquiries or technical support, please contact our customer service team
TPS546D24RVFT Description
TPS546D24RVFT is a type of 2.95-V to 16-V, stackable 40-A synchronous SWIFT? buck converter with PMBus. Up to 160 A on a single output can be provided by interconnecting two, three, and four TPS546D24 devices. The internal 5-V LDO can be overdriven with an external 5-V supply to ensure high efficiency and low power dissipation of the converter. Minimal size and stability over a wide range of output capacitances can be delivered through a proprietary fixed-frequency current-mode control with input feedforward and selectable internal compensation components.
TPS546D24RVFT Features
Package | Pins: LQFN-CLIP (RVF) | 40
Operating temperature range (°C): -40 to 125
12 selectable switching frequencies from 225 kHz to 1.5 MHz
Integrated 4.5-m?/0.9-m? MOSFETs
TPS546D24RVFT Applications
High-frequency operation
