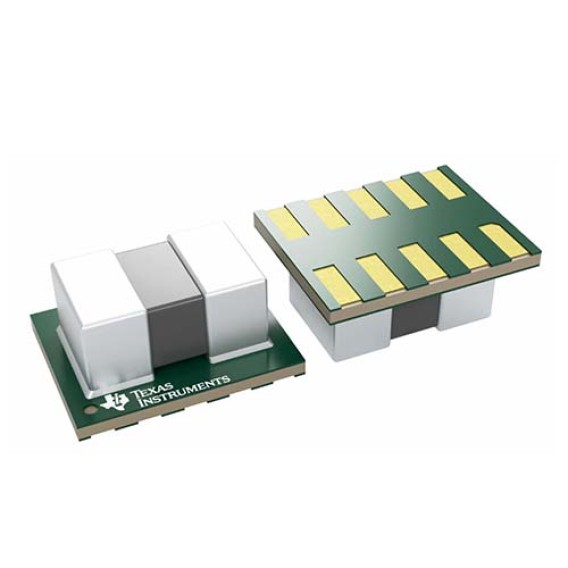

TPSM828212SILR Switching Regulator 5.5-V input, 2-A step-down module with integrated inductor in 2 x 2.5 x 1.1-mm SIP package
In Stock : 50
Share
Please send RFQ, we will respond immediately.
Product Details
Purchasing and Inquiry
The TPSM8282x device family consists of 1-A and 2-A step-down converter MicroSiP™ power modules optimized for small solution size and high efficiency.
The power module integrates a synchronous buck converter and inductor to simplify design, reduce external components, and save printed circuit board (PCB) area. The device is housed in a compact low profile package suitable for automated assembly by standard surface mount equipment.
To maximize efficiency, the converter operates in pulse-width modulation (PWM) mode at a nominal switching frequency of 4MHz and automatically enters a power-saving mode of operation at light load current conditions.
In power-save mode, the device operates with a typical quiescent current of 4µA. Using the DCS-Control topology, the device achieves excellent load transient performance and accurate output regulation. The device's EN and PG pins support sequential configuration for flexible system design. An integrated soft-start function reduces the inrush current required from the input power supply. Over-temperature protection and hiccupic short-circuit protection make the solution robust and reliable.
The TPSM8282x device family consists of 1-A and 2-A step-down converter MicroSiP™ power modules optimized for small solution size and high efficiency.
The power module integrates a synchronous buck converter and inductor to simplify design, reduce external components, and save printed circuit board (PCB) area. The device is housed in a compact low profile package suitable for automated assembly by standard surface mount equipment.
To maximize efficiency, the converter operates in pulse-width modulation (PWM) mode at a nominal switching frequency of 4MHz and automatically enters a power-saving mode of operation at light load current conditions.
In power-save mode, the device operates with a typical quiescent current of 4µA. Using the DCS-Control topology, the device achieves excellent load transient performance and accurate output regulation. The device's EN and PG pins support sequential configuration for flexible system design. An integrated soft-start function reduces the inrush current required from the input power supply. Over-temperature protection and hiccupic short-circuit protection make the solution robust and reliable.
TPSM828212SILR Applications
• Low Profile MicroSiP™ Power Modules
• Efficiency up to 95%
• Input voltage range from 2.4V to 5.5V
• 0.6V to 4V Adjustable Output Voltage
• 4µA Operating Quiescent Current
• DCS-Control topology
• Power Save Mode for Light Load Efficiency
• 100% Duty Cycle for Lowest Dropout
• Hiccup short circuit protection
• Output discharge
• Power Good Status Output
• Integrated soft start
• Overheating protection
• Packaged in a 2.0mm × 2.5mm × 1.1mm 10-Pin µSiL
• Total solution size is 29mm2
