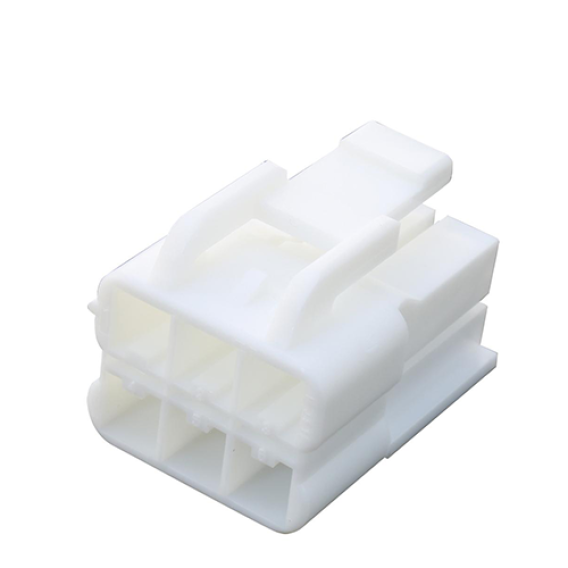

YLNP-06V
YLNP-06V
FEILIDI-YLNP-06V
BULK
4.5mm pitch/Disconnectable Crimp style Wire-to-wire connectors
In Stock : 1999
Share
Please send RFQ, we will respond immediately.
Product Details
Purchasing and Inquiry
shape to the existing color variations of the
YL connector in order to improve
identification of connectors. Moreover, this
connector has a mechanism to prevent
incomplete mating by utilizing the inertial
force generated when the plug and
receptacle are mated and therefore,
ensures complete mating.
• Design to prevent incidental mating with the
YL connector
• Inertial force mechanism
• Interchangeability
• Finger friendly design
Specifications
• Current rating: 10A max. AC, DC
(7A when retainers are mounted)
• Voltage rating: 300V max. AC, DC
• Temperature range: -25˚C to +90˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/ 7m Ω max.
After environmental testing/ 10m Ω max.
• Insulation resistance: 1,000M Ω min.
• Withstanding voltage: 1,500V AC/minute
• Applicable wire: AWG #26 to #16
0.13 to 1.25mm2
* Compliant with RoHS.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
