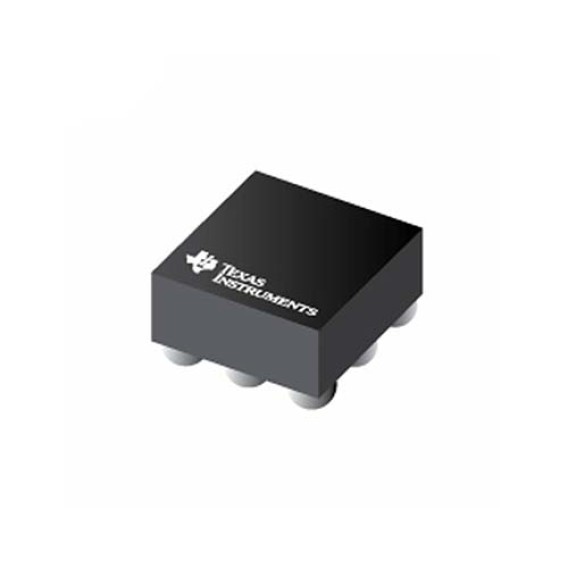

CSD22202W15
CSD22202W15
815-CSD22202W15
9-UFBGA, DSBGA
CSD22202W15 datasheet pdf and Transistors - FETs, MOSFETs - Single product details from Texas Instruments stock available at HK JDW
Unit Price: $5.0499
Ext Price: $5.0499
In Stock : 3000
Share
Qty
Unit Price
Ext Price
-
10
$4.76
$47.64
-
100
$4.49
$449.44
-
500
$4.24
$2,120.00
-
1000
$4.00
$4,000.00
Not the price you want? Send RFQ Now and we'll contact you ASAP.
Product Details
Purchasing and Inquiry
CSD22202W15 Description
CSD22202W15 is a -8V P channel NexFET? power MOSFET. The CSD22202W15 is designed to deliver the lowest on-resistance and gate charge in the smallest outline possible with excellent thermal characteristics in an ultra-low profile. Low on-resistance coupled with the small footprint and low profile make the CSD22202W15 ideal for battery-operated space-constrained applications.
CSD22202W15 Features
Low Resistance
Small Footprint 1.5 mm × 1.5 mm
Pb Free
Gate ESD Protection
RoHS Compliant
Halogen Free
Gate-Source Voltage Clamp
CSD22202W15 Applications
Battery Management
Battery Protection
Load Switch Applications
Electric vehicle systems
Computation
