LMZ13608TZE/NOPB
LMZ13608TZE/NOPB
FEILIDI-LMZ13608TZE/NOPB

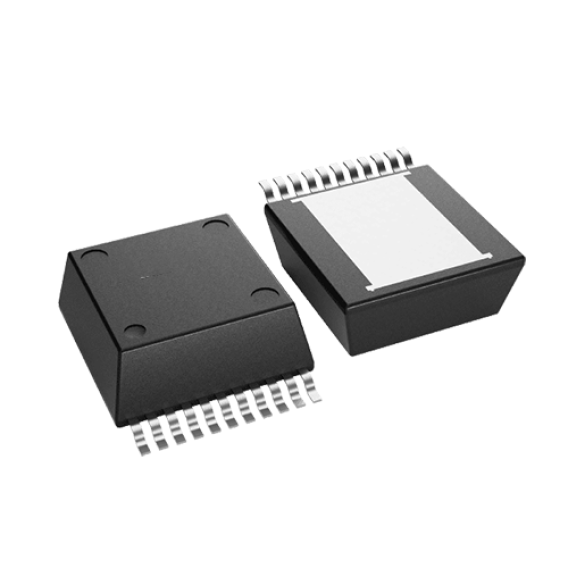

TO-PMOD-11, Power Module
DC DC CONVERTER 0.8-6V 8A
In Stock : 1999
Share
Please send RFQ, we will respond immediately.
Product Details
Purchasing and Inquiry
Features for the LMZ13608
Integrated Shielded Inductor
Simple PCB Layout
Fixed Switching Frequency (350 kHz)
Flexible Start-up Sequencing Using External Soft-Start, Tracking and Precision Enable
Protection Against Inrush Currents and Faults Such as Input UVLO and Output Short Circuit
Junction Temperature Range –40°C to 125°C
Single Exposed Pad and Standard Pinout for Easy Mounting and Manufacturing
Fully Enabled for WEBENCH® Power Designer
Pin Compatible With LMZ22010/08, LMZ12010/08, LMZ23610/08/06H, and LMZ13610/06H
Performance Benefits
High Efficiency Reduces System Heat Generation
Low Radiated Emissions (EMI) Tested to EN55022 Class B Standard
Only 7 External Components
Low Output Voltage Ripple
No External Heat Sink Required
Electrical Specifications
40-W Maximum Total Output Power
Up to 8-A Output Current
Input Voltage Range 6 V to 36 V
Output Voltage Range 0.8 V to 6 V
Efficiency up to 92%
(1)
(1)EN 55022:2006, +A1:2007, FCC Part 15 Subpart B, Tested on Evaluation Board with EMI Configuration
Description for the LMZ13608
The LMZ13608 SIMPLE SWITCHER® power module is an easy-to-use step-down DC-DC solution capable of driving up to 8-A load. The LMZ13608 is available in an innovative package that enhances thermal performance and allows for hand or machine soldering.
The LMZ13608 can accept an input voltage rail between 6 V and 36 V and can deliver an adjustable and highly accurate output voltage as low as 0.8 V. The LMZ13608 only requires two external resistors and three external capacitors to complete the power solution. The LMZ13608 is a reliable and robust design with the following protection features: thermal shutdown, input undervoltage lockout, output overvoltage protection, short circuit protection, output current limit, and the device allows start-up into a prebiased output.
