USB2ANY
USB2ANY
815-USB2ANY
Module
Interface - UARTs (Universal Asynchronous Receiver Transmitter) 13
In Stock : 999
Share
Please send RFQ, we will respond immediately.
Product Details
Purchasing and Inquiry

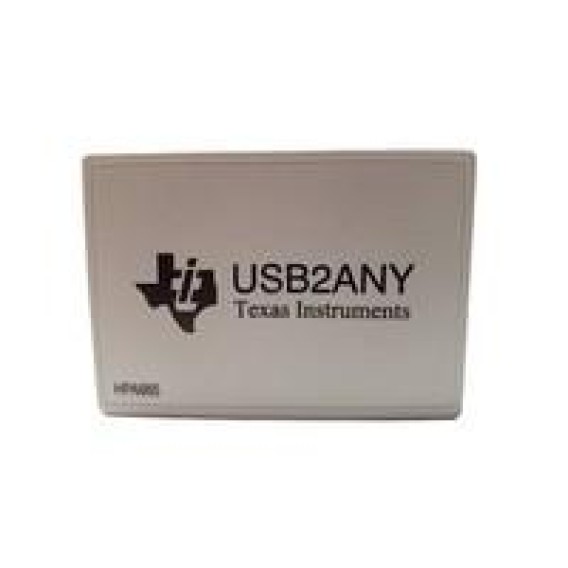

The USB2ANY is a small dongle that allows a computer to control an electronic evaluation module (EVM) via USB. Because of their specific interfaces, which are often supported on commercial computers, these EVMs cannot normally connect directly to the computer.
The USB2ANY board can supply regulated 3.3-V and 5.0-V DC power to the target device, with a maximum current of 300 mA. (combined 3.3 V and 5.0 V). The voltage outputs include current sensing and limiting circuits that protect both the EVM and the USB2ANY from overcurrent, shorts, and other potential problems.
A USB cable, a 10-pin cable (for most common interfaces), and a 30-pin cable are included with the USB2ANY (for all supported interfaces).
USB2ANY Interface Adapter Features
Fast execution (25-MHz clock)
16-bit RISC CPU
128KB flash memory
10KB SRAM
Two universal serial communication interfaces (supports SPI, I2C, UART)
Four analog inputs, 12-bit analog-to-digital converter (ADC)
Full-speed universal serial bus (USB) with internal PHY supporting USB 2.0
13 general purpose input/output (GPIO) (shared) lines with switchable pullup or pulldown resistors
Four PWM outputs
63 I/O pins
I2C with programmable 1.5-kΩ pullup resistors
Switchable 3.3-V or 5-V power to DUT
Four 16-bit counters and timers
Three-channel internal DMA
Two analog outputs, 8-bit digital-to-analog converter (DAC)
Hardware multiplier supporting 32-bit operations
SPI – up to 8-MHz SCLK
UART (300 to 230,400 Baud)
Several other interfaces
USB2ANY Interface Adapter Applications
EVM Applications
PWM Servo Motor
Signla Amplifiers
Voltage Reference
SPI bus
