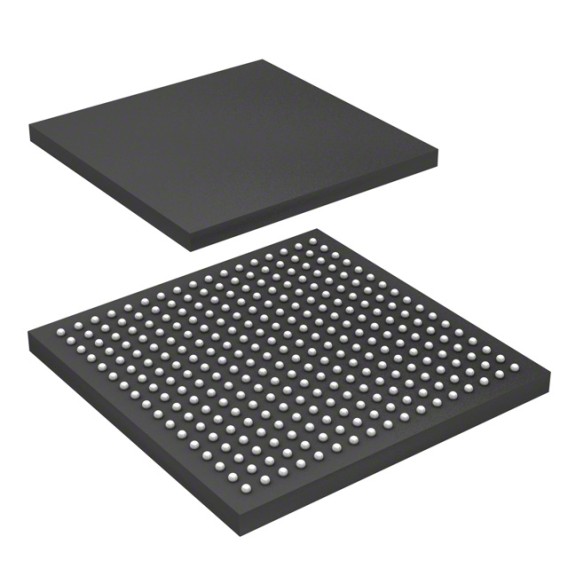

MCIMX283DVM4B
  • MCIMX283DVM4B
Free Sample More

MCIMX283DVM4B

advertisement

Manufacturer No:

MCIMX283DVM4B

Manufacturer:

NXP USA Inc.

HK JDW NO:

318-MCIMX283DVM4B

Package:

289-LFBGA

Datasheet:

MCIMX283DVM4B

Description:

0.8mm ARM926EJ-S Microprocessor i.MX28 Series MCIMX283 289-LFBGA

Quantity:

Add to RFQ list

In Stock : 999

Share

Please send RFQ, we will respond immediately.

* Contact Name

* Business Email

* Company Name

* Country

* Quantity

Product Details

Purchasing and Inquiry

MCIMX283DVM4B Description


The MCIMX283DVM4B is a low-power, high-performance applications processor optimized for the general embedded industrial and consumer markets. The core of the MCIMX283DVM4B is NXP's fast, power-efficient implementation of the ARM926EJ-S? core, with speeds of up to 454 MHz. The MCIMX283DVM4B applications processor offers a low-power, high-performance solution that comes optimized for the general embedded industrial and consumer markets.



MCIMX283DVM4B Features


LCD Controller with Touchscreen

NAND support – SLC/MLC and eMMC 4.4 managed

Hardware BCH (up to 20-bit correction)

200 MHz 16-bit DDR2, LV-DDR2, mDDR external memory support

Dual High-speed USB with embedded PHY

8 General purpose 12-bit ADC channels and a single 2 Msps ADC channel

Temperature sensor for thermal protection



MCIMX283DVM4B Applications


Human-machine interface (HMI) panels: industrial, home

Industrial Drive, PLC, I/O control display, factory robotics display, graphical remote controls

Handheld scanners and printers

Patient-monitoring, portable medical devices

Smart energy meters, energy gateways

Media phones, media gateways


1. Purchase

You can send an inquiry by email, or add the item to the RFQ list and submit it to us.
Tell us the model and quantity you need, our sales staff will reply the price in time.
EmailEmail for receiving inquiries: jindawei@hkjdwchip.com

2. Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

3. RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

4. Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:
FedEx International, 5-7 business days.
The following are some common countries' logistic time.

Purchasing and Inquiry

Payment Method

 The fee is charged according to the rule of PayPal.
East West Bank charge US$30.00 banking fee.
The fee is charged according to the rule of PayPal.
Western Union charge US$0.00 banking fee.

Shipping

 DHL(www.dhl.com)
From $40.00 basic shipping fee depend on zone and country.
UPS(www.ups.com)
From $40.00 basic shipping fee depend on zone and country.
FedEx(www.fedex.com)
From $40.00 basic shipping fee depend on zone and country.
Registered Mail(www.singpost.com)
From $10.00 basic shipping fee depend on different zone and country.

Package

Product
Step1Product
Casing drivepipe
Step2Casing drivepipe
Anti-static bag
Step3Anti-static bag
Packaging boxes
Step4Packaging boxes
Bar-code shipping tag
Step5Bar-code shipping tag

MCIMX283DVM4B

technical specifications, attributes, parameters and parts with similar specifications to MCIMX283DVM4B.

  • Type
    Parameter
    Select All

  • Factory Lead Time

    15 Weeks

  • Package / Case

    289-LFBGA

  • Surface Mount

    YES

  • Operating Temperature

    -20°C~70°C TA

  • Packaging

    Tray

  • Published

    2002

  • Series

    i.MX28

  • JESD-609 Code

    e1

  • Part Status

    Active

  • Moisture Sensitivity Level (MSL)

    3 (168 Hours)

  • Number of Terminations

    289

  • ECCN Code

    5A992

  • Terminal Finish

    Tin/Silver/Copper (Sn/Ag/Cu)

  • HTS Code

    8542.31.00.01

  • Technology

    CMOS

  • Terminal Position

    BOTTOM

  • Terminal Form

    BALL

  • Terminal Pitch

    0.8mm

  • Base Part Number

    MCIMX283

  • JESD-30 Code

    S-PBGA-B289

  • Supply Voltage-Max (Vsup)

    1.55V

  • Supply Voltage-Min (Vsup)

    1.35V

  • Speed

    454MHz

  • uPs/uCs/Peripheral ICs Type

    MULTIFUNCTION PERIPHERAL

  • Core Processor

    ARM926EJ-S

  • Clock Frequency

    24MHz

  • Boundary Scan

    YES

  • RAM (words)

    128000

  • Voltage - I/O

    1.8V 3.3V

  • Ethernet

    10/100Mbps (1)

  • Number of Cores/Bus Width

    1 Core 32-Bit

  • Graphics Acceleration

    No

  • RAM Controllers

    LVDDR, LVDDR2, DDR2

  • USB

    USB 2.0 + PHY (2)

  • Additional Interfaces

    I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, SSP, UART

  • Number of Serial I/Os

    4

  • Co-Processors/DSP

    Data; DCP

  • Bus Compatibility

    CAN; ETHERNET; I2C; IRDA; SPI; UART; USB

  • Security Features

    Boot Security, Cryptography, Hardware ID

  • Display & Interface Controllers

    Keyboard, LCD, Touchscreen

  • Height Seated (Max)

    1.37mm

  • Length

    14mm

  • RoHS Status

    ROHS3 Compliant
